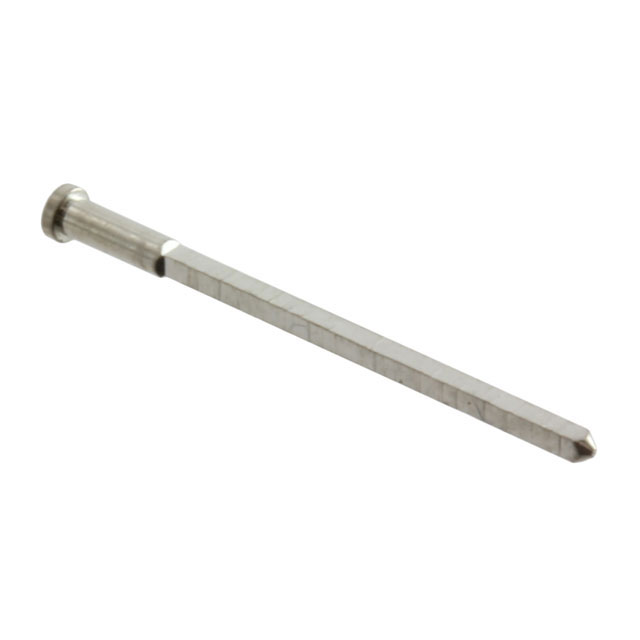

H3175-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3175-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H3175-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H3175-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PIN RCPT .016-.021 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.262 | $0.244 | $0.22 | $0.195 | $0.187 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.171 | $0.163 | $0.134 | $0.122 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H3175-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .016-.021 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179261 pcs | Data sheet | H3175 DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Wire Wrap | Tail Diameter | 0.025" (0.64mm) |
| Socket Depth | 0.128" (3.25mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 952-2379 H3175-01-ND H317501 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.039" ~ 0.043" (0.99mm ~ 1.09mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Length - Overall | 0.656" (16.66mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | 6.00N |
| Flange Diameter | 0.019" (0.48mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.016" ~ 0.021" (0.41mm ~ 0.53mm) Wire Wrap Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) |
