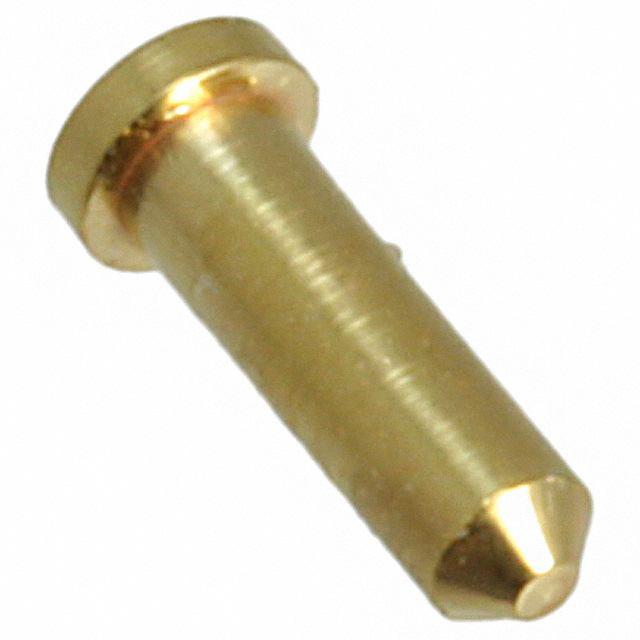

H3153-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3153-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H3153-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H3153-05 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PIN RCPT .018-.020 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.13 | $0.123 | $0.106 | $0.09 | $0.086 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.078 | $0.074 | $0.062 | $0.056 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H3153-05 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .018-.020 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 344403 pcs | Data sheet | H3153 DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.124" (3.15mm) | Series | - |
| Pin Hole Diameter | 0.043" (1.09mm) | Packaging | Bulk |
| Other Names | 952-2303 H315305 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.039" ~ 0.043" (0.99mm ~ 1.09mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Length - Overall | 0.142" (3.61mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.057" (1.45mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.018" ~ 0.020" (0.46mm ~ 0.51mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.018" ~ 0.020" (0.46mm ~ 0.51mm) |
