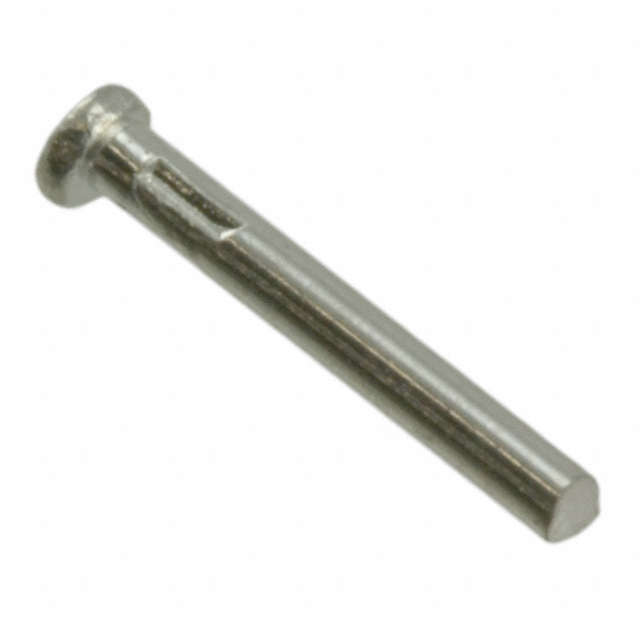

H3150-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3150-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H3150-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H3150-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PC PIN CIRC 0.038DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H3150-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.038DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4015 pcs | Data sheet | H3150 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.038" (0.97mm) Dia | Packaging | Bulk |
| Other Names | 952-1448 | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.039" ~ 0.041" (0.99mm ~ 1.04mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Length - Overall | 0.295" (7.49mm) |
| Length - Below Flange | - | Length - Above Flange | 0.276" (7.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.063" (1.60mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.038" (0.97mm) Dia | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.063" ~ 0.094" (1.60mm ~ 2.39mm) |
