Home > Products > Connectors, Interconnects > Terminals - PC Pin, Single Post Connectors > H2475-05

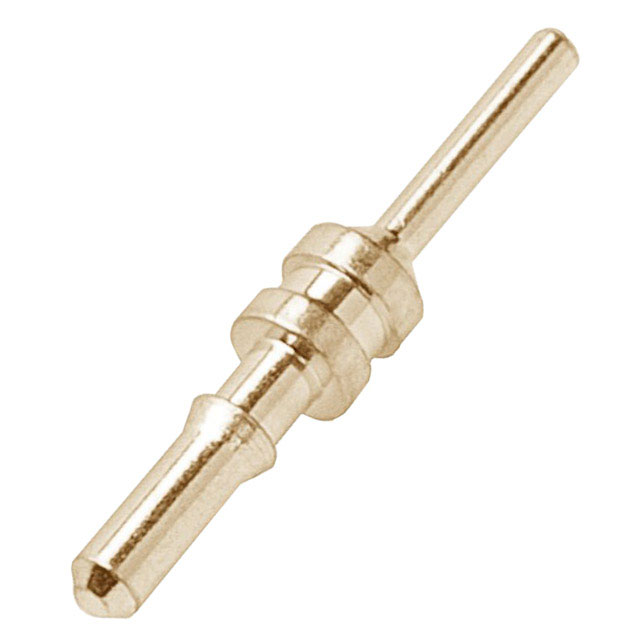

H2475-05

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2475-05 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H2475-05
Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.020DIA GOLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 700016 pcs
Reference Price (In US Dollars)	26000 pcs
Reference Price (In US Dollars)	$0.032

Product parameter
Data sheet

Product parameter

Part Number	H2475-05	Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.020DIA GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	700016 pcs	Data sheet	H2475-xx Drawing
Category	Connectors, Interconnects	Termination	Swage, Barbed
Terminal Type	PC Pin	Terminal Style	Double End
Series	-	Pin Size - Below Flange	0.030" (0.76mm) Dia
Pin Size - Above Flange	0.020" (0.51mm) Dia	Packaging	Bulk
Mounting Type	Through Hole	Mounting Hole Diameter	0.030" ~ 0.033" (0.76mm ~ 0.84mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	7 Weeks	Length - Overall	0.287" (7.29mm)
Length - Below Flange	0.118" (3.00mm)	Length - Above Flange	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.050" (1.27mm)
Detailed Description	PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia	Contact Material	Brass
Contact Finish Thickness	-	Contact Finish	Gold
Board Thickness	0.063" (1.60mm)
