Home > Products > Connectors, Interconnects > Terminals - PC Pin, Single Post Connectors > H2474-01

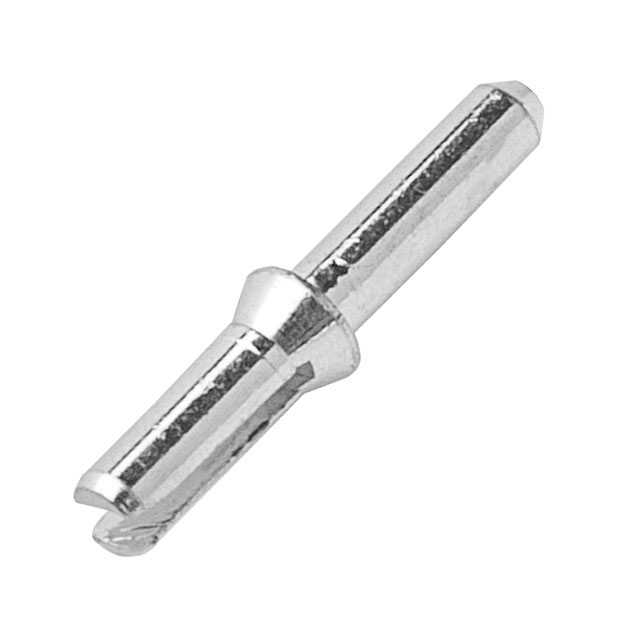

H2474-01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2474-01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H2474-01
Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.039DIA TIN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 290068 pcs
Reference Price (In US Dollars)	25000 pcs
Reference Price (In US Dollars)	$0.065

Product parameter
Data sheet

Product parameter

Part Number	H2474-01	Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.039DIA TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	290068 pcs	Data sheet	H2474-01 Drawing
Category	Connectors, Interconnects	Termination	Swage
Terminal Type	PC Pin	Terminal Style	Single End, Slotted
Series	-	Pin Size - Below Flange	-
Pin Size - Above Flange	0.039" (0.99mm) Dia	Packaging	Bulk
Mounting Type	Through Hole	Mounting Hole Diameter	0.036" ~ 0.041" (0.91mm ~ 1.03mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	7 Weeks	Length - Overall	0.295" (7.49mm)
Length - Below Flange	0.108" (2.74mm)	Length - Above Flange	0.157" (3.99mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.063" (1.60mm)
Detailed Description	PC Pin Terminal Connector Through Hole Tin 0.039" (0.99mm) Dia	Contact Material	Brass
Contact Finish Thickness	-	Contact Finish	Tin
Board Thickness	0.031" ~ 0.126" (0.79mm ~ 3.20mm)
