Home > Products > Connectors, Interconnects > Terminals - PC Pin, Single Post Connectors > H2475-01

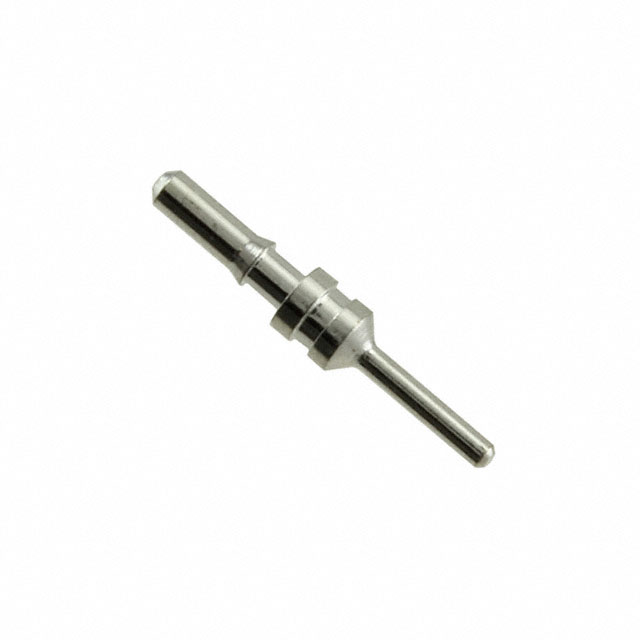

H2475-01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2475-01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H2475-01
Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.020DIA TIN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 398170 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.132	$0.127	$0.108	$0.092	$0.089
	$0.079	$0.076	$0.063	$0.058

Product parameter
Data sheet

Product parameter

Part Number	H2475-01	Manufacturer	Harwin
Description	CONN PC PIN CIRC 0.020DIA TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	398170 pcs	Data sheet	H2475-xx Drawing
Category	Connectors, Interconnects	Termination	Swage, Barbed
Terminal Type	PC Pin	Terminal Style	Double End
Series	-	Pin Size - Below Flange	0.030" (0.76mm) Dia
Pin Size - Above Flange	0.020" (0.51mm) Dia	Packaging	Bulk
Other Names	952-2828 H2475-01-ND	Mounting Type	Through Hole
Mounting Hole Diameter	0.030" ~ 0.033" (0.76mm ~ 0.84mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.287" (7.29mm)	Length - Below Flange	0.118" (3.00mm)
Length - Above Flange	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	0.050" (1.27mm)	Detailed Description	PC Pin Terminal Connector Through Hole Tin 0.020" (0.51mm) Dia
Contact Material	Brass	Contact Finish Thickness	-
Contact Finish	Tin	Board Thickness	0.063" (1.60mm)
