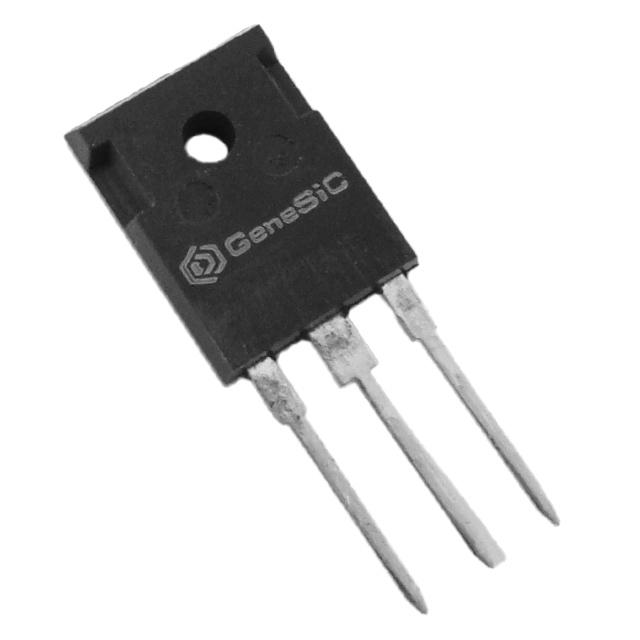

GA20SICP12-247
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GA20SICP12-247 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GA20SICP12-247 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GA20SICP12-247 |
|---|---|
| Manufacturer | GeneSiC Semiconductor |
| Description | TRANS SJT 1200V 45A TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $15.223 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | GA20SICP12-247 | Manufacturer | GeneSiC Semiconductor |
|---|---|---|---|
| Description | TRANS SJT 1200V 45A TO247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2333 pcs | Data sheet | GA20SICP12-247 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | - | Technology | SiC (Silicon Carbide Junction Transistor) |
| Supplier Device Package | TO-247AB | Series | - |
| Rds On (Max) @ Id, Vgs | 50 mOhm @ 20A | Power Dissipation (Max) | 282W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3091pF @ 800V |
| FET Type | - | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | Drain to Source Voltage (Vdss) | 1200V |
| Detailed Description | 1200V 45A (Tc) 282W (Tc) Through Hole TO-247AB | Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
