GA20JT12-247

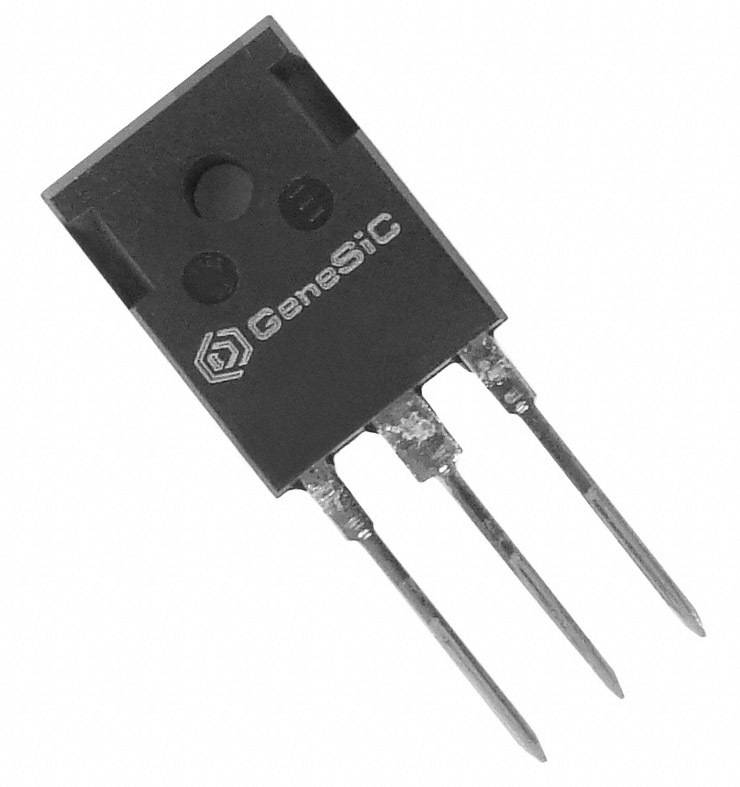

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GA20JT12-247 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GA20JT12-247 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GA20JT12-247 |
|---|---|
| Manufacturer | GeneSiC Semiconductor |
| Description | TRANS SJT 1.2KV 20A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | GA20JT12-247 | Manufacturer | GeneSiC Semiconductor |
|---|---|---|---|
| Description | TRANS SJT 1.2KV 20A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4089 pcs | Data sheet | GA20JT12-247 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | - | Technology | SiC (Silicon Carbide Junction Transistor) |
| Supplier Device Package | TO-247AB | Series | - |
| Rds On (Max) @ Id, Vgs | 70 mOhm @ 20A | Power Dissipation (Max) | 282W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Other Names | 1242-1188 GA20JT12247 |
Operating Temperature | 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | FET Type | - |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | - |
| Drain to Source Voltage (Vdss) | 1200V | Detailed Description | 1200V 20A (Tc) 282W (Tc) Through Hole TO-247AB |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
