GA20JT12-263

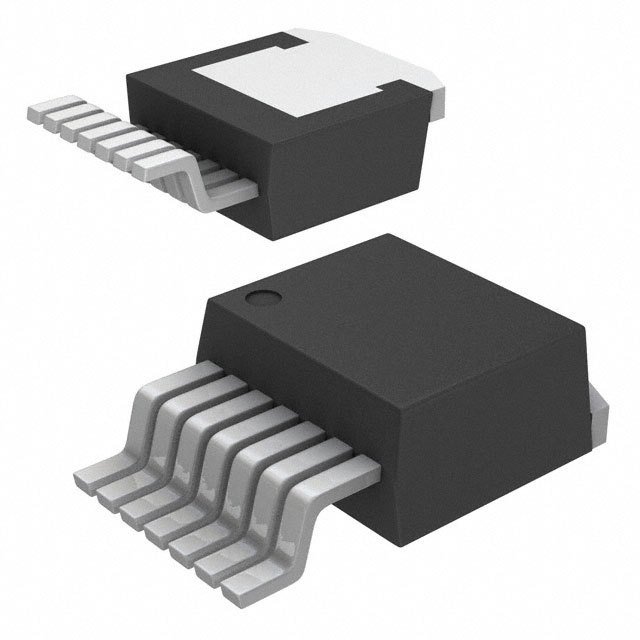

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GA20JT12-263 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GA20JT12-263 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GA20JT12-263 |
|---|---|
| Manufacturer | GeneSiC Semiconductor |
| Description | TRANS SJT 1200V 45A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $14.883 | $13.768 | $12.652 | $11.759 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | GA20JT12-263 | Manufacturer | GeneSiC Semiconductor |
|---|---|---|---|
| Description | TRANS SJT 1200V 45A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3141 pcs | Data sheet | GA20JT12-263 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | - | Technology | SiC (Silicon Carbide Junction Transistor) |
| Supplier Device Package | D2PAK (7-Lead) | Series | - |
| Rds On (Max) @ Id, Vgs | 60 mOhm @ 20A | Power Dissipation (Max) | 282W (Tc) |
| Packaging | Tube | Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Other Names | 1242-1189 GA20JT12-247ISO GA20JT12247ISO |
Operating Temperature | 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3091pF @ 800V | FET Type | - |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | - |
| Drain to Source Voltage (Vdss) | 1200V | Detailed Description | 1200V 45A (Tc) 282W (Tc) Surface Mount D2PAK (7-Lead) |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
