Home > Products > RF/IF and RFID > RF Antennas > P522304

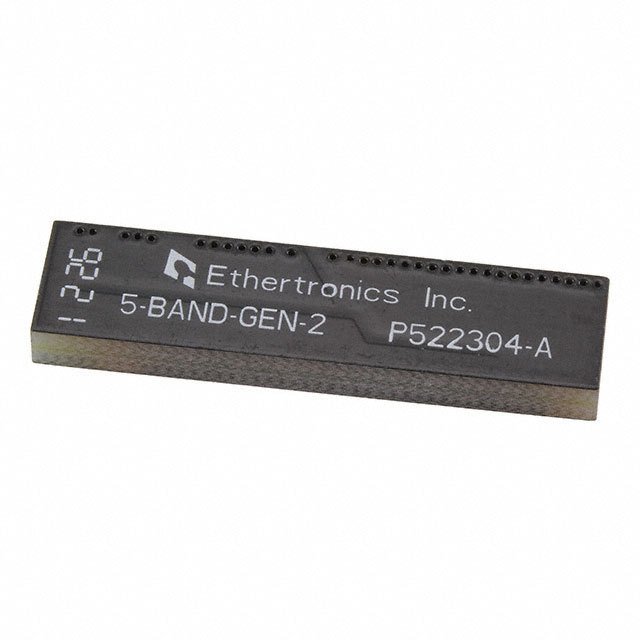

P522304

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P522304 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	P522304
Manufacturer	Ethertronics
Description	RF ANT 850MHZ/900MHZ CHIP SLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 20520 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$1.877	$1.791

Product parameter
Data sheet

Product parameter

Part Number	P522304	Manufacturer	Ethertronics
Description	RF ANT 850MHZ/900MHZ CHIP SLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20520 pcs	Data sheet	P522304 Datasheet
Category	RF/IF and RFID	VSWR	2.5
Termination	Solder	Series	Prestta™
Return Loss	-	Power - Max	2W
Packaging	Cut Tape (CT)	Other Names	939-1022-1
Number of Bands	5	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.126" (3.20mm)	Gain	1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi
Frequency Range	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Frequency Group	Wide Band
Frequency (Center/Band)	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	Features	-
Detailed Description	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CDMA, DCS, GSM, PCS, UMTS, WCDMA Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi Solder Surface Mount	Applications	CDMA, DCS, GSM, PCS, UMTS, WCDMA
Antenna Type	Chip
