Home > Products > RF/IF and RFID > RF Antennas > P522306

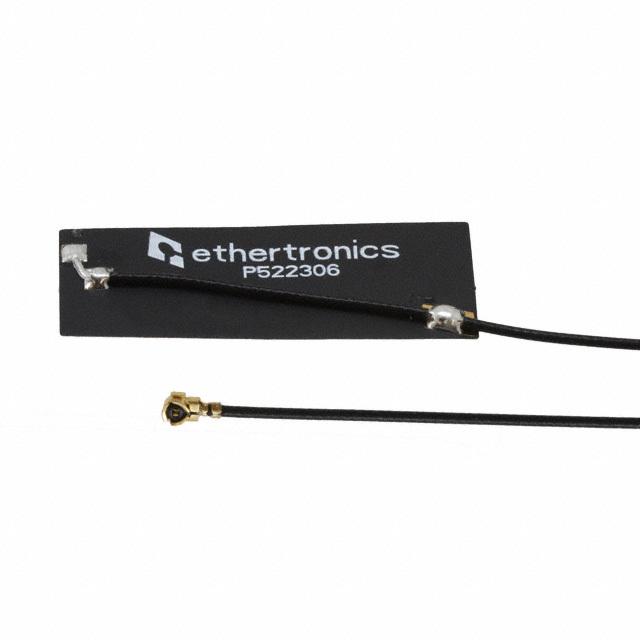

P522306

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P522306 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	P522306
Manufacturer	Ethertronics
Description	RF ANT 850MHZ/900MHZ FLAT PATCH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 31569 pcs
Reference Price (In US Dollars)	8000 pcs
Reference Price (In US Dollars)	$1.246

Product parameter
Data sheet

Product parameter

Part Number	P522306	Manufacturer	Ethertronics
Description	RF ANT 850MHZ/900MHZ FLAT PATCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31569 pcs	Data sheet	P522306-10 Brief
Category	RF/IF and RFID	VSWR	3
Termination	Cable (200mm) - U.FL	Series	Prestta™
Return Loss	-	Power - Max	2W
Packaging	Bulk	Other Names	939-1031
Number of Bands	5	Mounting Type	Adhesive
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.049" (1.25mm)	Gain	2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi
Frequency Range	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Frequency Group	Wide Band
Frequency (Center/Band)	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	Features	-
Detailed Description	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CDMA, DCS, GSM, PCS, UMTS, WCDMA Flat Patch RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi Cable (200mm) - U.FL Adhesive	Applications	CDMA, DCS, GSM, PCS, UMTS, WCDMA
Antenna Type	Flat Patch
