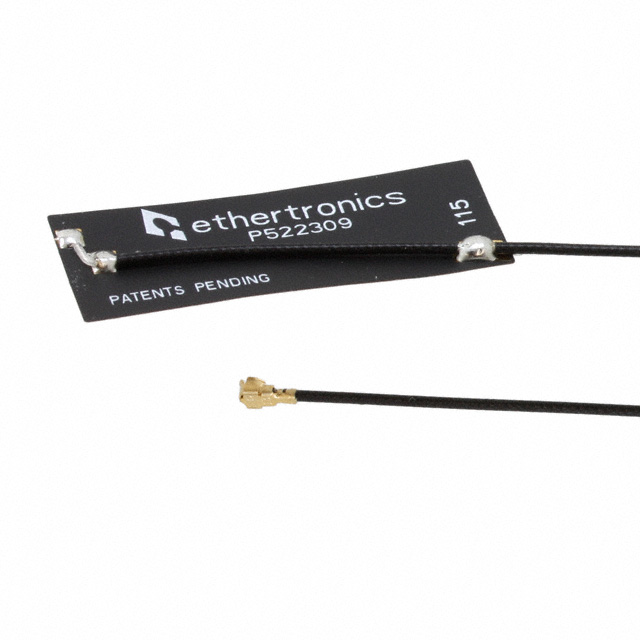

P522309
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P522309 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P522309 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P522309 |
|---|---|
| Manufacturer | Ethertronics |
| Description | RF ANT 850MHZ/900MHZ FLAT PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 500 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $2.285 | $1.689 | $1.563 | $1.429 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | P522309 | Manufacturer | Ethertronics |
|---|---|---|---|
| Description | RF ANT 850MHZ/900MHZ FLAT PATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23021 pcs | Data sheet | P522306-10 Brief |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Cable (100mm) - U.FL | Series | Prestta™ |
| Return Loss | - | Power - Max | 2W |
| Packaging | Bulk | Other Names | 939-1032 |
| Number of Bands | 5 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.049" (1.25mm) | Gain | 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | Features | - |
| Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CDMA, DCS, GSM, PCS, UMTS, WCDMA Flat Patch RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi Cable (100mm) - U.FL Adhesive | Applications | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
| Antenna Type | Flat Patch |
