Home > Products > Circuit Protection > TVS - Diodes > VESD05A5A-HSF-GS08

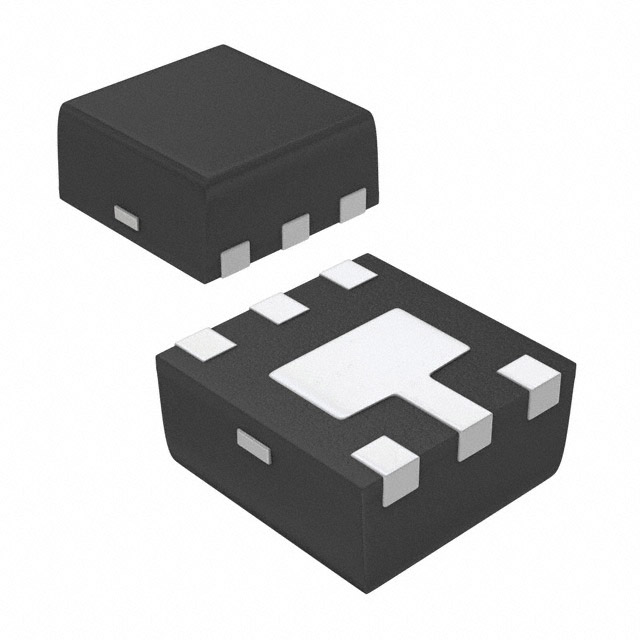

VESD05A5A-HSF-GS08

VESD05A5A-HSF-GS08

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VESD05A5A-HSF-GS08 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VESD05A5A-HSF-GS08
Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 5V 13V LLP75-6L
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 414059 pcs
Reference Price (In US Dollars)	15000 pcs
Reference Price (In US Dollars)	$0.056

Product parameter
Data sheet

Product parameter

Part Number	VESD05A5A-HSF-GS08	Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 5V 13V LLP75-6L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	414059 pcs	Data sheet	VESD05A5A-HSF
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	13V	Voltage - Breakdown (Min)	6V
Unidirectional Channels	5	Type	Zener
Supplier Device Package	LLP75-6L	Series	-
Power Line Protection	No	Power - Peak Pulse	33W
Packaging	Tape & Reel (TR)	Package / Case	6-UFDFN Exposed Pad
Other Names	VESD05A5A-HSF-GS08TR VESD05A5AHSFGS08	Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	49 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)	Capacitance @ Frequency	13pF @ 1MHz
Base Part Number	VESD05A*A	Applications	General Purpose
