Home > Products > Circuit Protection > TVS - Diodes > VESD09A4A-HS4-GS08

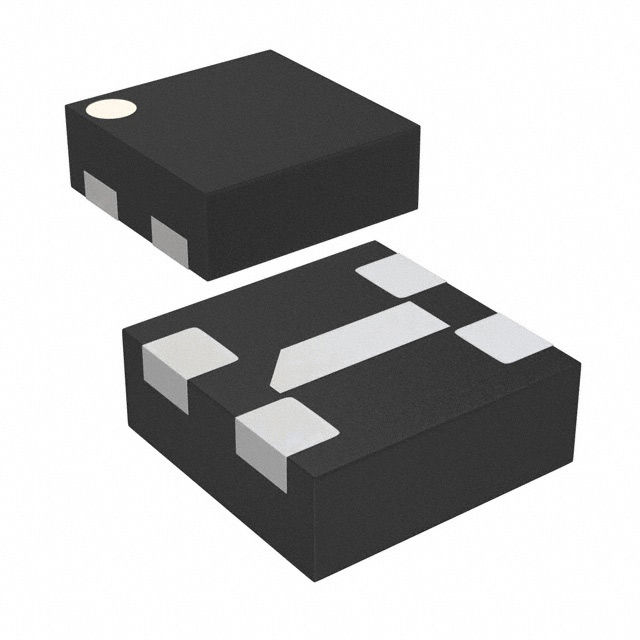

VESD09A4A-HS4-GS08

VESD09A4A-HS4-GS08

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VESD09A4A-HS4-GS08 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VESD09A4A-HS4-GS08
Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 9V 23V LLP1010-5L
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5786 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	VESD09A4A-HS4-GS08	Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 9V 23V LLP1010-5L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5786 pcs	Data sheet	VESD09A4A-HS4
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	9V (Max)
Voltage - Clamping (Max) @ Ipp	23V	Voltage - Breakdown (Min)	11.2V
Unidirectional Channels	4	Type	Zener
Supplier Device Package	LLP1010-5L	Series	-
Power Line Protection	No	Power - Peak Pulse	30W
Packaging	Tape & Reel (TR)	Package / Case	4-XFDFN Exposed Pad
Other Names	751-1457-2	Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	1.5A (8/20µs)
Capacitance @ Frequency	6.2pF @ 1MHz	Base Part Number	VESD09A4A
Applications	General Purpose
