Home > Products > Circuit Protection > TVS - Diodes > VESD05A1B-02V-G-08

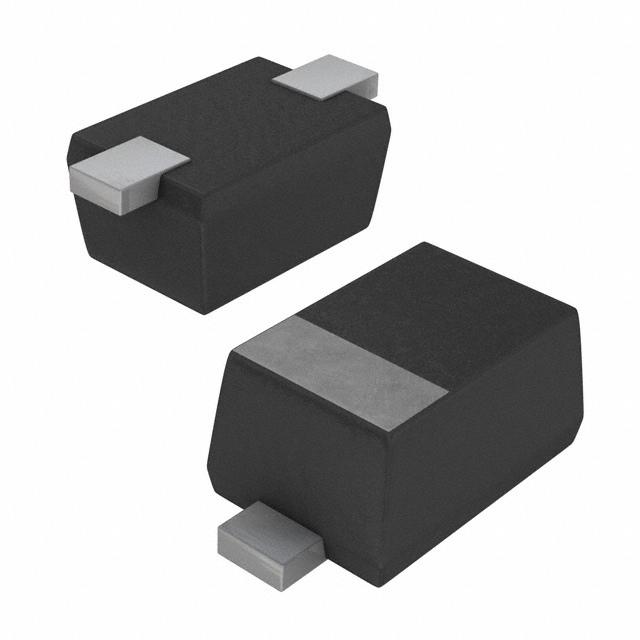

VESD05A1B-02V-G-08

VESD05A1B-02V-G-08

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VESD05A1B-02V-G-08 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VESD05A1B-02V-G-08
Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 5V 11V SOD523
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 732806 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs
Reference Price (In US Dollars)	$0.038	$0.036	$0.033	$0.031

Product parameter
Data sheet

Product parameter

Part Number	VESD05A1B-02V-G-08	Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 5V 11V SOD523	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	732806 pcs	Data sheet	VESD05A1B-02V
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	11V	Voltage - Breakdown (Min)	6V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	SOD-523	Series	-
Power Line Protection	No	Power - Peak Pulse	33W
Packaging	Tape & Reel (TR)	Package / Case	SC-79, SOD-523
Other Names	VESD05A1B-02V-G-08TR VESD05A1B02VG08	Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	40 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	3A (8/20µs)	Capacitance @ Frequency	19pF @ 1MHz
Base Part Number	VESD05A1B	Applications	General Purpose
