SQJ204EP-T1_GE3

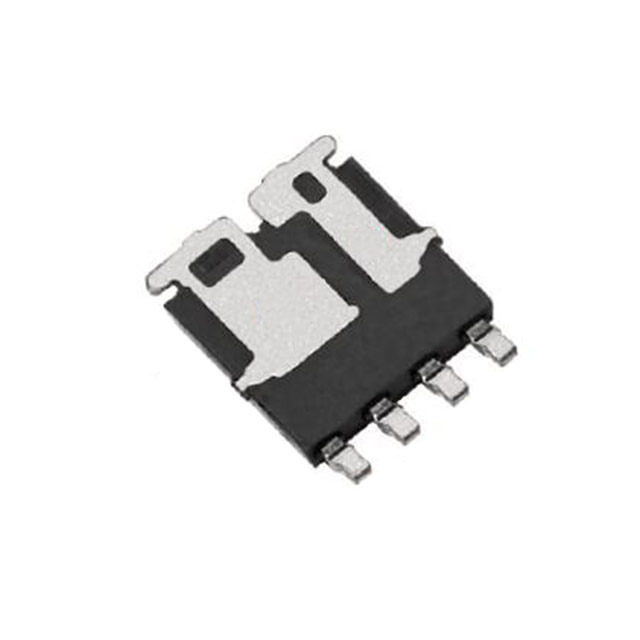

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SQJ204EP-T1_GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SQJ204EP-T1_GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SQJ204EP-T1_GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET DUAL N-CH 12V PPAK SO-8L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.206 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SQJ204EP-T1_GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET DUAL N-CH 12V PPAK SO-8L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101814 pcs | Data sheet | SQJ204EP |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | PowerPAK® SO-8 Dual Asymmetric | Series | Automotive, AEC-Q101, TrenchFET® |
| Rds On (Max) @ Id, Vgs | 8.3 mOhm @ 4A, 10V, 3 mOhm @ 10A, 10V | Power - Max | 27W (Tc), 48W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | PowerPAK® SO-8 Dual |
| Other Names | SQJ204EP-T1_GE3TR | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 47 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 6V, 3700pF @ 6V | Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V, 50nC @ 10V |
| FET Type | 2 N-Channel (Dual) Asymmetrical | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 12V | Detailed Description | Mosfet Array 2 N-Channel (Dual) Asymmetrical 12V 20A (Tc), 60A (Tc) 27W (Tc), 48W (Tc) Surface Mount PowerPAK® SO-8 Dual Asymmetric |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc), 60A (Tc) |
