SQJ416EP-T1_GE3

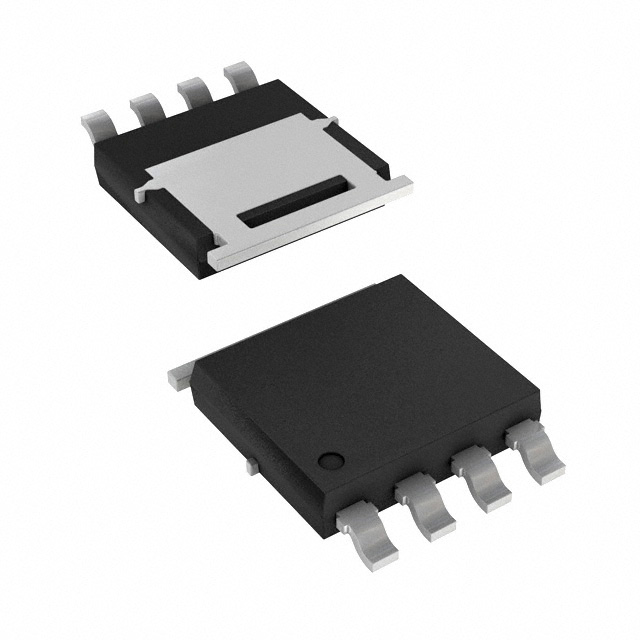

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SQJ416EP-T1_GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SQJ416EP-T1_GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SQJ416EP-T1_GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 100V 27A POWERPAKSO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.142 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SQJ416EP-T1_GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 100V 27A POWERPAKSO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 142645 pcs | Data sheet | SQJ416EP |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerPAK® SO-8 | Series | Automotive, AEC-Q101, TrenchFET® |
| Rds On (Max) @ Id, Vgs | 30 mOhm @ 10A, 10V | Power Dissipation (Max) | 45W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | PowerPAK® SO-8 |
| Other Names | SQJ416EP-T1_GE3TR | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 800pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 27A (Tc) 45W (Tc) Surface Mount PowerPAK® SO-8 |
| Current - Continuous Drain (Id) @ 25°C | 27A (Tc) |
