B82801C2245A200
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82801C2245A200 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82801C2245A200 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82801C2245A200 |
|---|---|
| Manufacturer | EPCOS |
| Description | CURR SENSE XFMR 1:200 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.517 | $1.229 | $0.993 | $0.931 | $0.889 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | B82801C2245A200 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:200 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39881 pcs | Data sheet | B82801C Series |
| Category | Transformers | Weight | 0.011 lb (4.99g) |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:200 |
| Termination Style | Gull Wing | Size / Dimension | 0.560" L x 0.530" W (14.22mm x 13.46mm) |
| Series | B82801C | Ratings | - |
| Packaging | Cut Tape (CT) | Other Names | 495-4444-1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 22.4mH | Height - Seated (Max) | 0.394" (10.00mm) |
| Frequency Range | 50kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 1:200 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 2.9 Ohm Secondary 22.4mH Surface Mount | DC Resistance (DCR) | 0.28 mOhm Primary, 2.9 Ohm Secondary |
| Current Ratio | - |
- Related products
- Related news
Related products

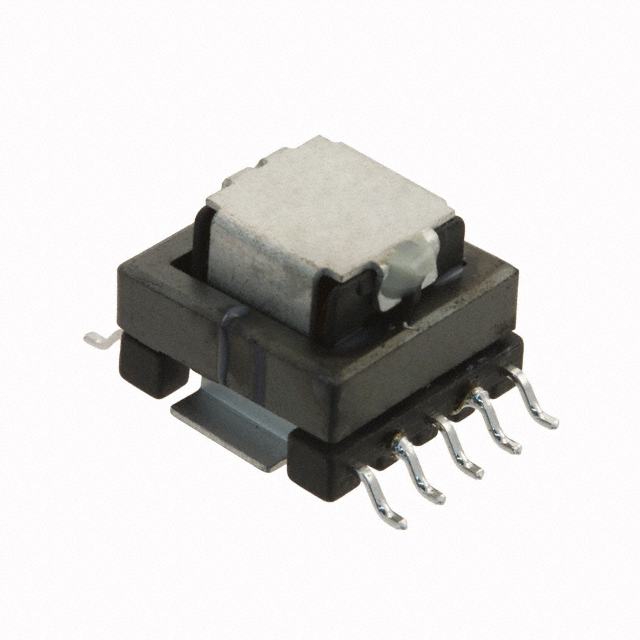

- Part#:
