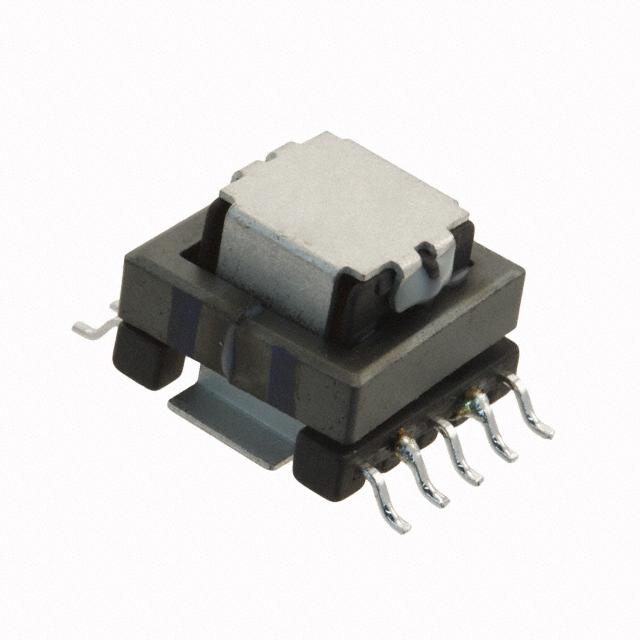

B82801C0565A100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82801C0565A100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82801C0565A100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82801C0565A100 |
|---|---|
| Manufacturer | EPCOS |
| Description | CURR SENSE XFMR 1:100 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | 400 pcs | 600 pcs | 1000 pcs | 5000 pcs |
|---|---|---|---|---|---|
| $0.825 | $0.80 | $0.776 | $0.752 | $0.691 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | B82801C0565A100 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:100 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52022 pcs | Data sheet | B82801C Series |
| Category | Transformers | Weight | 0.011 lb (4.99g) |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:100 |
| Termination Style | Gull Wing | Size / Dimension | 0.560" L x 0.530" W (14.22mm x 13.46mm) |
| Series | B82801C | Ratings | - |
| Packaging | Tape & Reel (TR) | Other Names | 495-4442-2 B82801C 565A100 B82801C565A100 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 5.6mH | Height - Seated (Max) | 0.394" (10.00mm) |
| Frequency Range | 50kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 1:100 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 1 Ohm Secondary 5.6mH Surface Mount | DC Resistance (DCR) | 0.28 mOhm Primary, 1 Ohm Secondary |
| Current Ratio | - |
