Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65671W0000R030

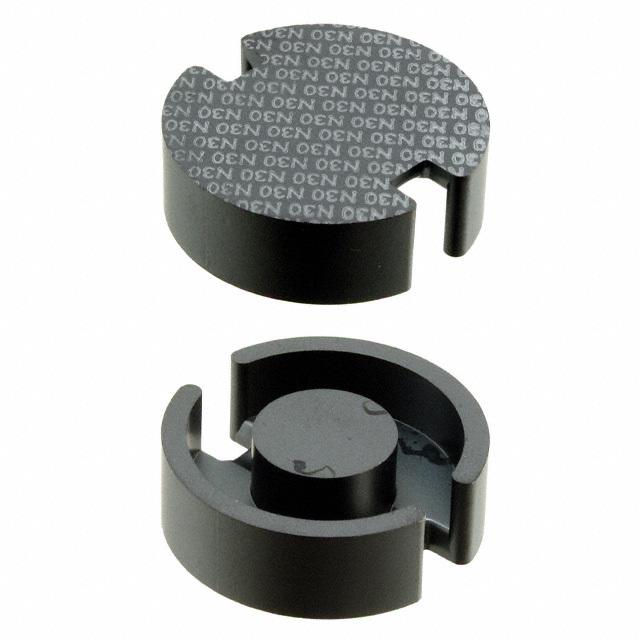

B65671W0000R030

B65671W0000R030

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65671W0000R030 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65671W0000R030
Manufacturer	EPCOS
Description	FERRITE CORE P 9.7UH N30 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 61477 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.215	$1.042	$0.781	$0.76
	$0.673	$0.629	$0.586	$0.543

Product parameter
Data sheet

Product parameter

Part Number	B65671W0000R030	Manufacturer	EPCOS
Description	FERRITE CORE P 9.7UH N30 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61477 pcs	Data sheet	B65671/2/5/9 Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	-20%, +30%	Supplier Device Package	P 26 x 16
Series	B65671	Other Names	495-5165 B65671W R 30 B65671WR30 B65671WR30-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	87
Material	N30	Manufacturer Standard Lead Time	51 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	4300	Inductance Factor (Al)	9.7µH
Height	8.15mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	2860
Effective Magnetic Volume (Ve) mm³	4320	Effective Length (le) mm	40
Effective Area (Ae) mm²	108	Diameter	26.00mm
Core Type	P (Pot Core)	Core Factor (ΣI/A) mm1	0.37
