Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65684A0000R027

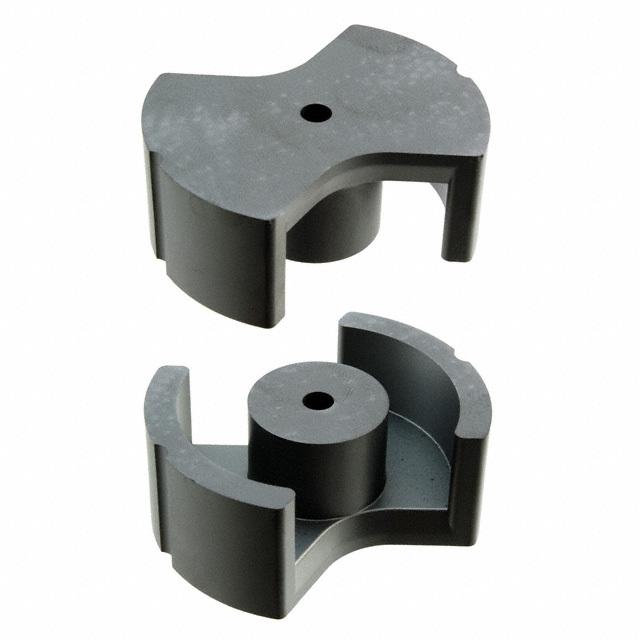

B65684A0000R027

B65684A0000R027

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65684A0000R027 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65684A0000R027
Manufacturer	EPCOS
Description	FERRITE CORE PM 9.2UH N27 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7590 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$8.43	$7.542	$5.945	$5.767
	$5.057	$4.667	$4.472

Product parameter
Data sheet

Product parameter

Part Number	B65684A0000R027	Manufacturer	EPCOS
Description	FERRITE CORE PM 9.2UH N27 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7590 pcs	Data sheet	B65684,85 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	-20%, +30%	Supplier Device Package	PM 62 x 49
Series	B65684	Other Names	495-5171 B65684A R 27 B65684AR27 B65684AR27-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	470
Material	N27	Manufacturer Standard Lead Time	24 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2000	Inductance Factor (Al)	9.2µH
Height	24.50mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	1400
Effective Magnetic Volume (Ve) mm³	62000	Effective Length (le) mm	109
Effective Area (Ae) mm²	570	Diameter	62.00mm
Core Type	PM	Core Factor (ΣI/A) mm1	0.191
