Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0659X830

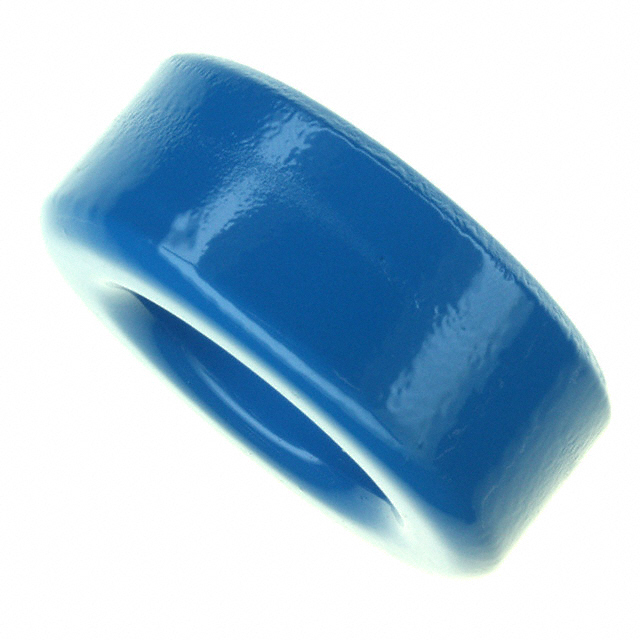

B64290L0659X830

B64290L0659X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0659X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0659X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 7UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	160 pcs	320 pcs	560 pcs	1040 pcs
~~In Stock~~ 36186 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	80 pcs
	$1.994	$1.698	$1.292	$1.255
	$1.107	$1.034	$0.96	$0.923

Product parameter
Data sheet

Product parameter

Part Number	B64290L0659X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 7UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36186 pcs	Data sheet	B64290L0659 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-3866 B64290L 659X830 B64290L659X830
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	125.3
Material	N30	Manufacturer Standard Lead Time	24 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	4300	Inductance Factor (Al)	7µH
Height	17.20mm	Gap	Ungapped
Finish	Epoxy	Effective Magnetic Volume (Ve) mm³	12070
Effective Length (le) mm	96.29	Effective Area (Ae) mm²	125.3
Diameter	41.80mm	Core Type	Toroid
Core Factor (ΣI/A) mm1	0.77
