Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0659X087

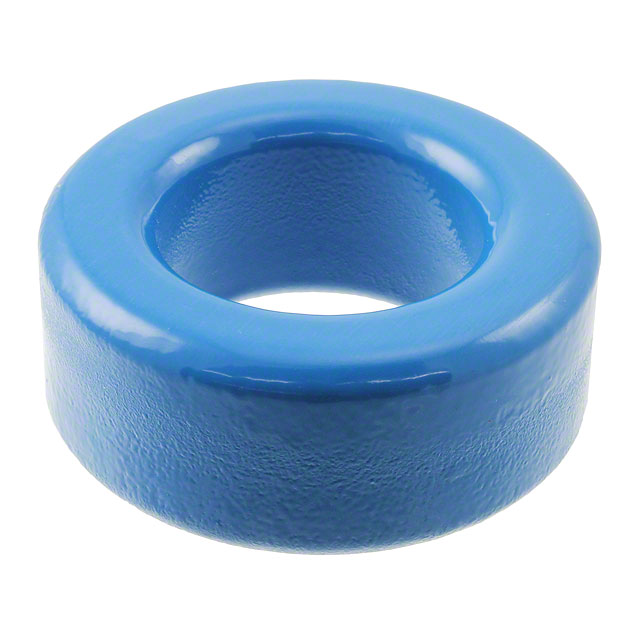

B64290L0659X087

B64290L0659X087

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0659X087 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0659X087
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 3.59UH N87
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 37888 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.81	$1.543	$1.174	$1.141
	$1.006	$0.939	$0.872	$0.839

Product parameter
Data sheet

Product parameter

Part Number	B64290L0659X087	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 3.59UH N87	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37888 pcs	Data sheet	B64290L0659 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-5084 B64290L 659X 87 B64290L659X87 B64290L659X87-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	125.3
Material	N87	Manufacturer Standard Lead Time	24 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2200	Inductance Factor (Al)	3.59µH
Height	17.20mm	Gap	Ungapped
Finish	Epoxy	Effective Magnetic Volume (Ve) mm³	12070
Effective Length (le) mm	96.29	Effective Area (Ae) mm²	125.3
Diameter	41.80mm	Core Type	Toroid
Core Factor (ΣI/A) mm1	0.77
