Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0658X087

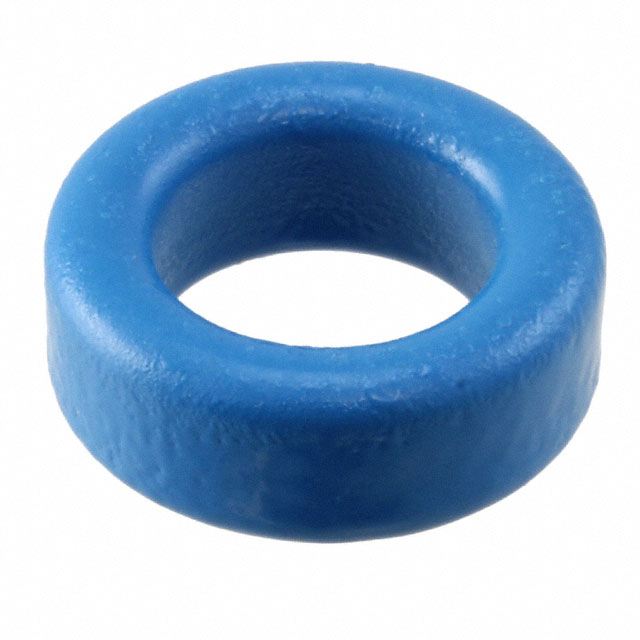

B64290L0658X087

B64290L0658X087

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0658X087 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0658X087
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 970NH N87
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 437492 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.156	$0.125	$0.106	$0.093	$0.083
	$0.072	$0.065	$0.056	$0.052

Product parameter
Data sheet

Product parameter

Part Number	B64290L0658X087	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 970NH N87	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	437492 pcs	Data sheet	Ferrites, Accessories General Info B64290L0658 Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-5081 B64290L 658X 87 B64290L658X87 B64290L658X87-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N87
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	2200
Inductance Factor (Al)	970nH	Height	6.00mm
Gap	Ungapped	Finish	Epoxy
Effective Magnetic Volume (Ve) mm³	430	Effective Length (le) mm	34.98
Effective Area (Ae) mm²	12.3	Diameter	15.10mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	2.84
