Home > Products > Switches > Rocker Switches > RVW42D1100

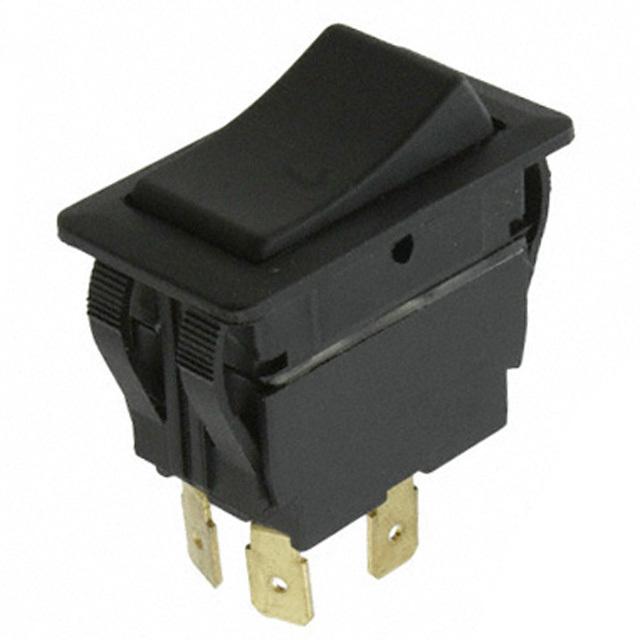

RVW42D1100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RVW42D1100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RVW42D1100
Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 24950 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.976	$1.881	$1.787	$1.693
	$1.67	$1.623	$1.552	$1.364

Product parameter
Data sheet

Product parameter

Part Number	RVW42D1100	Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24950 pcs	Data sheet	RVW/G Series Datasheet RVW42D1100 Drawing
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	RVW, LAMB	Panel Cutout Dimensions	Rectangular - 36.80mm x 21.00mm
Packaging	Bulk	Other Names	EG4781
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP54 - Dust Protected, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch DPST 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
