Home > Products > Switches > Rocker Switches > RVW4GD1100

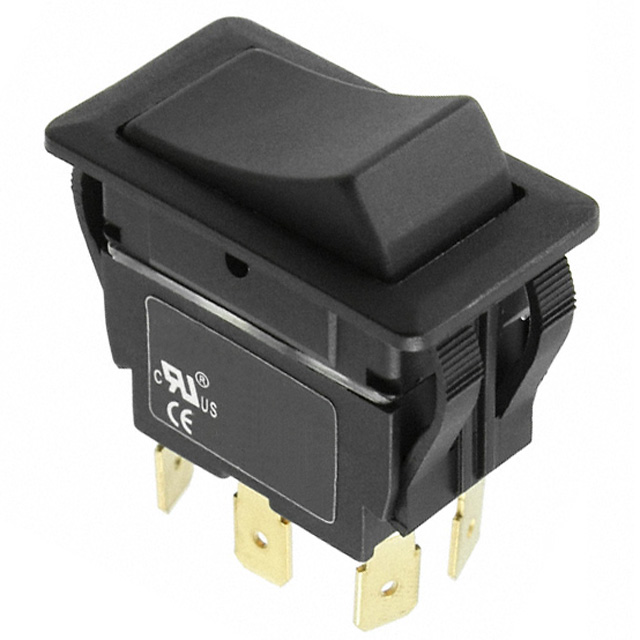

RVW4GD1100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RVW4GD1100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RVW4GD1100
Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 15458 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.321	$3.079	$2.917	$2.877
	$2.836	$2.755	$2.512	$2.269

Product parameter
Data sheet

Product parameter

Part Number	RVW4GD1100	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15458 pcs	Data sheet	RVW4GD1100 Drawing RVW/G Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-On
Series	RVW, LAMB	Panel Cutout Dimensions	Rectangular - 36.80mm x 21.00mm
Packaging	Bulk	Other Names	EG4785
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP54 - Dust Protected, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch DPDT 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
