Home > Products > Switches > Rocker Switches > RVW42D1100-116

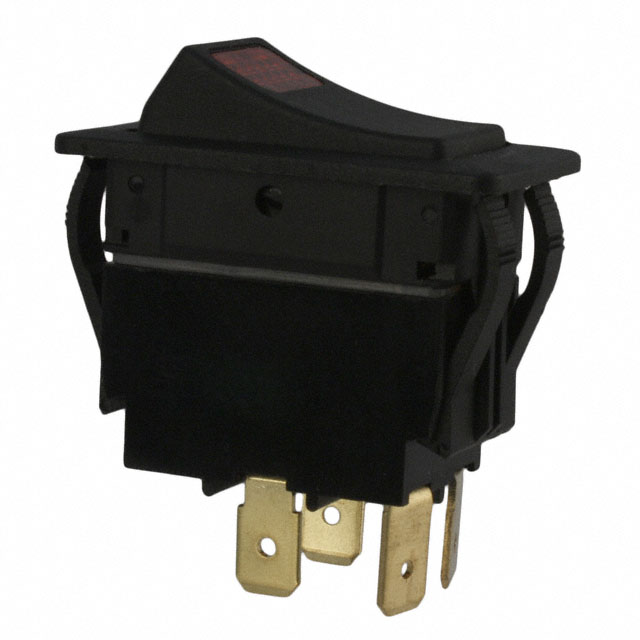

RVW42D1100-116

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RVW42D1100-116 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RVW42D1100-116
Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 32061 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.151

Product parameter
Data sheet

Product parameter

Part Number	RVW42D1100-116	Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32061 pcs	Data sheet	RVW/G Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	RVW, LAMB	Panel Cutout Dimensions	Rectangular - 36.80mm x 21.00mm
Packaging	Bulk	Other Names	EG4782
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP54 - Dust Protected, Water Resistant	Illumination Voltage (Nominal)	125 VAC
Illumination Type, Color	Neon, Red	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch DPST 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved) - Illuminated
Actuator Marking	No Marking
