Home > Products > Switches > Rocker Switches > RRA12C1000-116

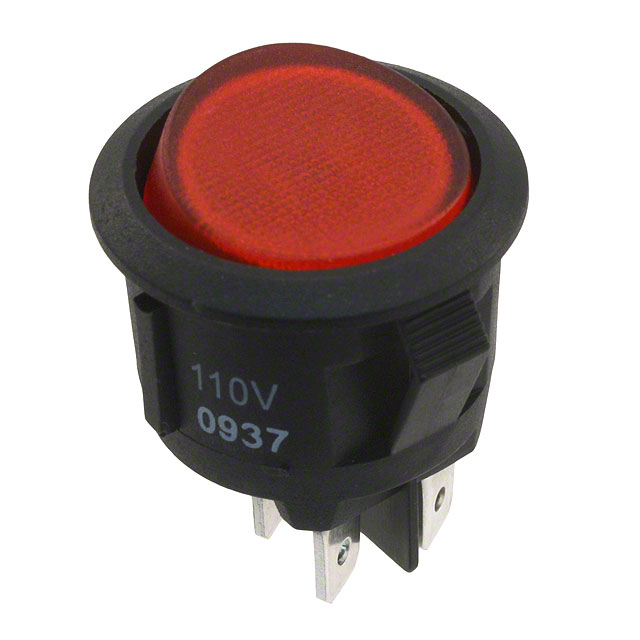

RRA12C1000-116

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RRA12C1000-116 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RRA12C1000-116
Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 83497 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.616	$0.591	$0.564	$0.537	$0.51
	$0.497	$0.47	$0.416	$0.403

Product parameter
Data sheet

Product parameter

Part Number	RRA12C1000-116	Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	83497 pcs	Data sheet	RRA12C1000-116 Drawing RRA Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	RRA, LAMB	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Other Names	EG4769 RRA12C1000116
Operating Temperature	-20°C ~ 105°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	125 VAC
Illumination Type, Color	Neon, Red	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPST 15A (AC) 125V Panel Mount, Snap-In
Current Rating	15A (AC)	Color - Actuator/Cap	Red
Circuit	DPST	Actuator Type	Round - Illuminated
Actuator Marking	No Marking
