Home > Products > Switches > Rocker Switches > RRA22H3BBRLN

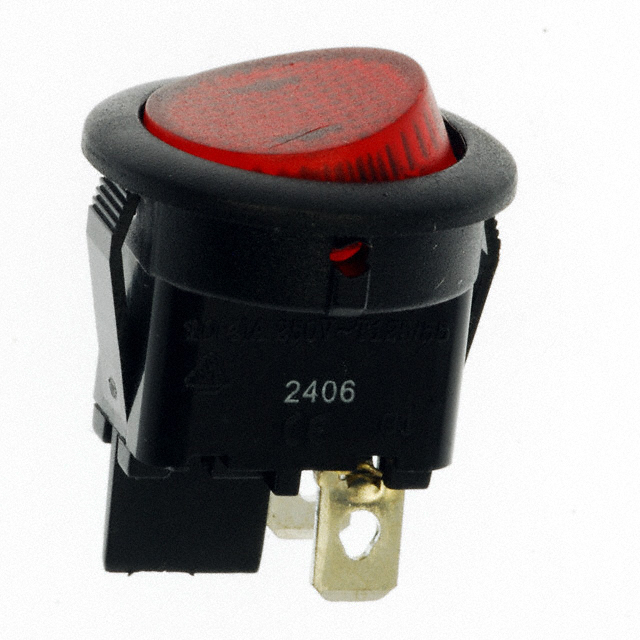

RRA22H3BBRLN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RRA22H3BBRLN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RRA22H3BBRLN
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPST 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 54542 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.534	$0.509	$0.486	$0.463	$0.439
	$0.428	$0.405	$0.359	$0.347

Product parameter
Data sheet

Product parameter

Part Number	RRA22H3BBRLN	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54542 pcs	Data sheet	RR Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	RR	Panel Cutout Dimensions	Circular - 20.00mm Dia
Packaging	Bulk	Other Names	CH870
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	125 VAC
Illumination Type, Color	Neon, Red	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In
Current Rating	10A (AC)	Color - Actuator/Cap	Red
Circuit	SPST	Actuator Type	Round - Illuminated
Actuator Marking	No Marking
