Home > Products > Switches > Rocker Switches > RRA1GC1100

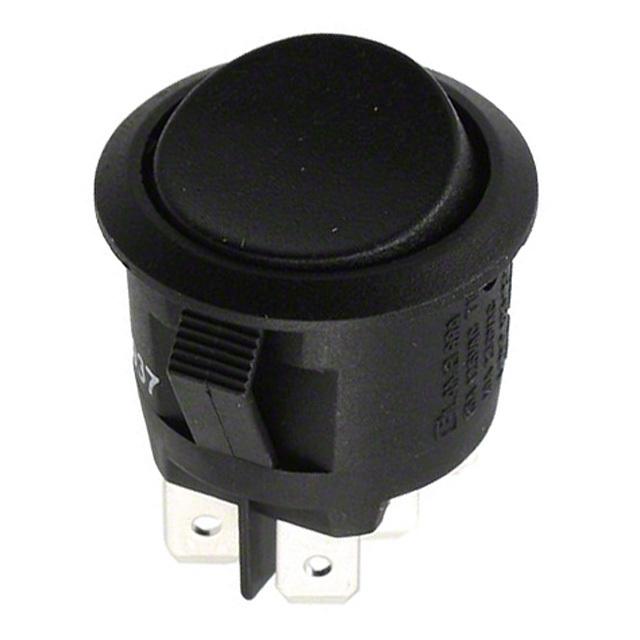

RRA1GC1100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RRA1GC1100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RRA1GC1100
Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 73756 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.701	$0.67	$0.64	$0.609	$0.579
	$0.563	$0.533	$0.472	$0.457

Product parameter
Data sheet

Product parameter

Part Number	RRA1GC1100	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73756 pcs	Data sheet	RRA Series Datasheet RRA1GC1100 Drawing
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-On
Series	RRA, LAMB	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Other Names	EG4770
Operating Temperature	-20°C ~ 105°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 15A (AC) 125V Panel Mount, Snap-In
Current Rating	15A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Round
Actuator Marking	No Marking
