C3M0120090J

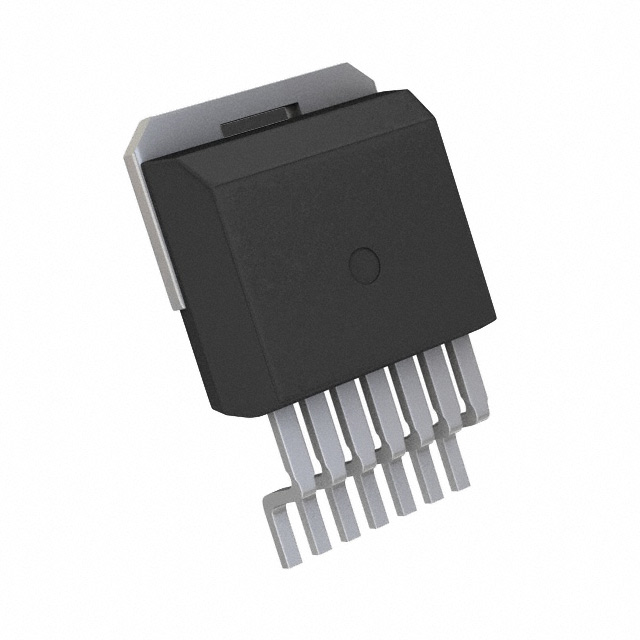

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C3M0120090J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C3M0120090J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C3M0120090J |
|---|---|
| Manufacturer | Cree Wolfspeed |
| Description | MOSFET N-CH 900V 22A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.158 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | C3M0120090J | Manufacturer | Cree Wolfspeed |
|---|---|---|---|
| Description | MOSFET N-CH 900V 22A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9827 pcs | Data sheet | C3M0120090J |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.5V @ 3mA |
| Vgs (Max) | +18V, -8V | Technology | SiCFET (Silicon Carbide) |
| Supplier Device Package | D2PAK-7 | Series | C3M™ |
| Rds On (Max) @ Id, Vgs | 155 mOhm @ 15A, 15V | Power Dissipation (Max) | 83W (Tc) |
| Packaging | Tube | Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 350pF @ 600V |
| Gate Charge (Qg) (Max) @ Vgs | 17.3nC @ 15V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Drain to Source Voltage (Vdss) | 900V | Detailed Description | N-Channel 900V 22A (Tc) 83W (Tc) Surface Mount D2PAK-7 |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
