APT20M45BVRG

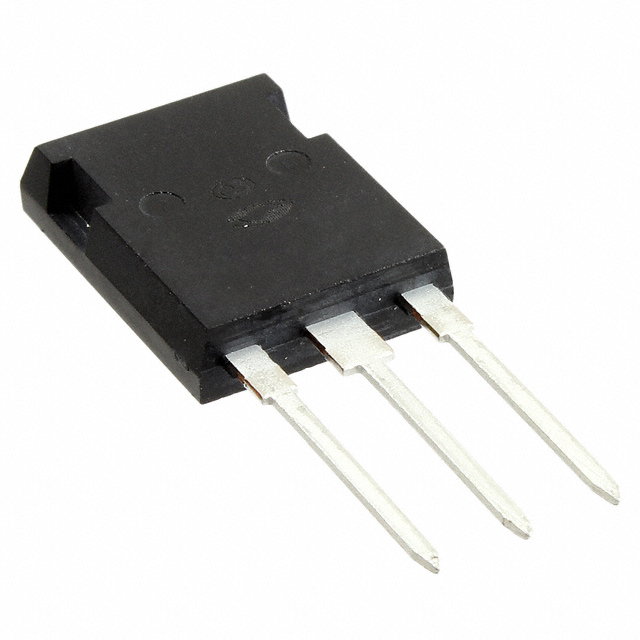

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT20M45BVRG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT20M45BVRG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT20M45BVRG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 200V 56A TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 60 pcs | ||||
|---|---|---|---|---|---|
| $3.911 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT20M45BVRG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 200V 56A TO-247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9084 pcs | Data sheet | Power Products CatalogAPT20M45BVR |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-247 [B] | Series | POWER MOS V® |
| Rds On (Max) @ Id, Vgs | 45 mOhm @ 500mA, 10V | Power Dissipation (Max) | 300W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 4860pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 195nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 200V | Detailed Description | N-Channel 200V 56A (Tc) 300W (Tc) Through Hole TO-247 [B] |
| Current - Continuous Drain (Id) @ 25°C | 56A (Tc) |
