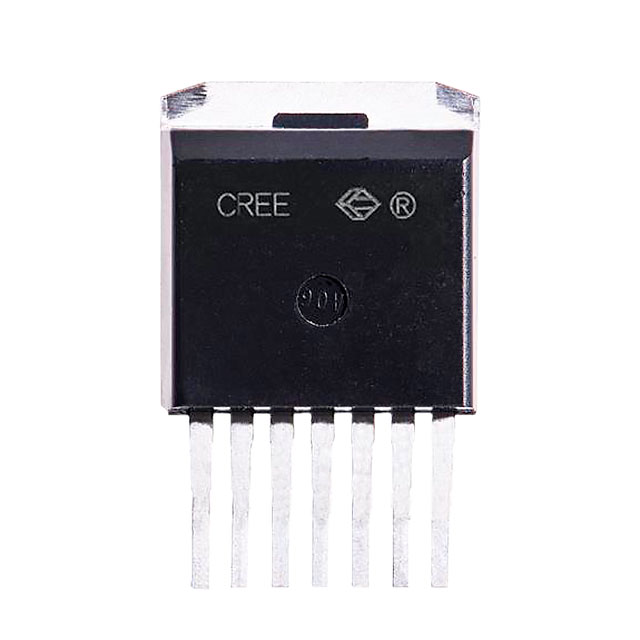

C3M0075120J
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C3M0075120J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C3M0075120J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C3M0075120J |
|---|---|
| Manufacturer | Cree Wolfspeed |
| Description | MOSFET N-CH 1200V 30A D2PAK-7 |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $5.784 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | C3M0075120J | Manufacturer | Cree Wolfspeed |
|---|---|---|---|
| Description | MOSFET N-CH 1200V 30A D2PAK-7 | Lead Free Status / RoHS Status | |
| Quantity Available | 5430 pcs | Data sheet | C3M0075120J |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 5mA |
| Vgs (Max) | +19V, -8V | Technology | SiCFET (Silicon Carbide) |
| Supplier Device Package | D2PAK-7 | Series | C3M™ |
| Rds On (Max) @ Id, Vgs | 90 mOhm @ 20A, 15V | Power Dissipation (Max) | 113.6W (Tc) |
| Packaging | Bulk | Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Input Capacitance (Ciss) (Max) @ Vds | 1350pF @ 1000V | Gate Charge (Qg) (Max) @ Vgs | 51nC @ 15V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 15V | Drain to Source Voltage (Vdss) | 1200V |
| Detailed Description | N-Channel 1200V 30A (Tc) 113.6W (Tc) Surface Mount D2PAK-7 | Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
