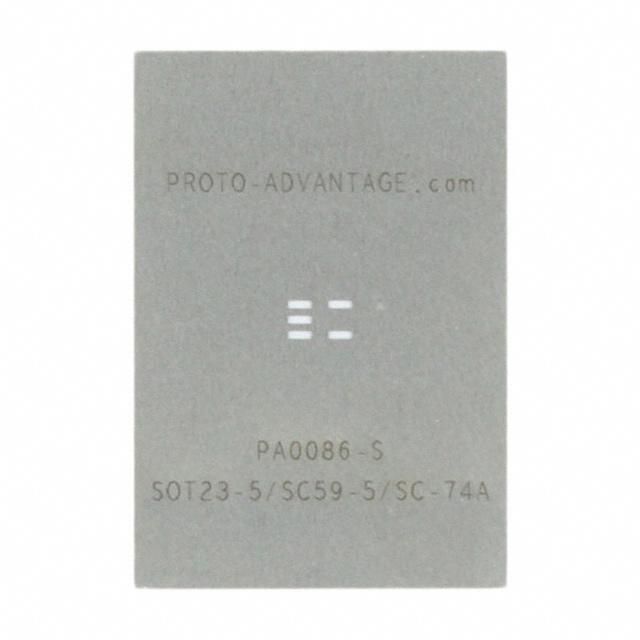

PA0086-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0086-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0086-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0086-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | SOT23-5/SC59-5/SC-74A STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.071 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0086-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | SOT23-5/SC59-5/SC-74A STENCIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9536 pcs | Data sheet | PA0086-S DatasheetStencil Selection GuildeCircuit Assembly Instr |
| Category | Soldering, Desoldering, Rework Products | Type | SOT/SC |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | - |
| Series | Proto-Advantage | Pitch | 0.037" (0.95mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Number of Positions | 5 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | Stainless Steel |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inner Dimension | - |
