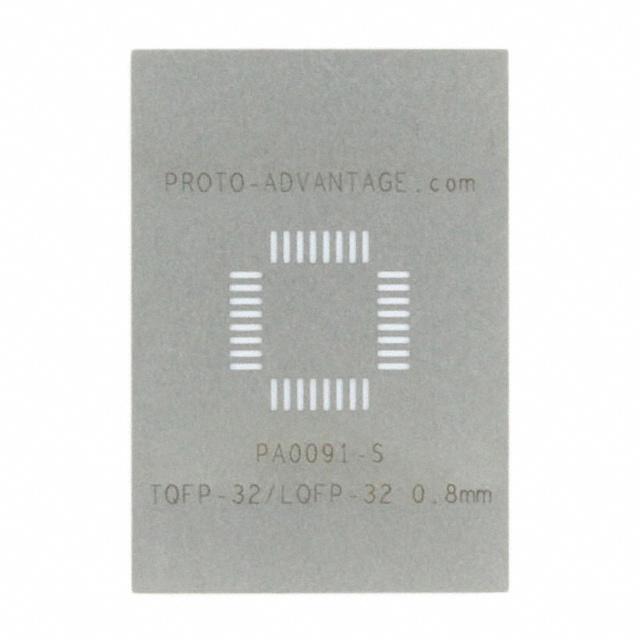

PA0091-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0091-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0091-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0091-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | STENCIL TQFP-32 .8MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.371 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0091-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | STENCIL TQFP-32 .8MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8208 pcs | Data sheet | Stencil Selection GuildeCircuit Assembly InstrPA0091-S |
| Category | Soldering, Desoldering, Rework Products | Type | TQFP |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | - |
| Series | Proto-Advantage | Pitch | 0.031" (0.80mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Other Names | PA0091S |
| Number of Positions | 32 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material | Stainless Steel | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inner Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
