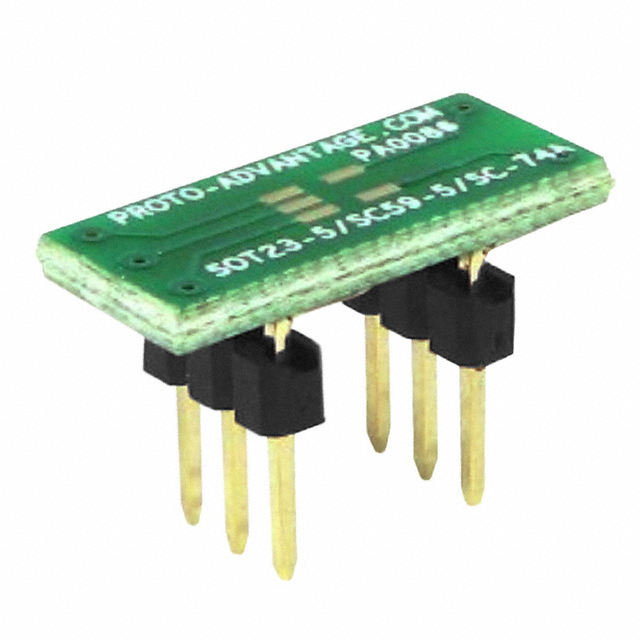

PA0086
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0086 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0086 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0086 |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | SOT23-5/SC59-5/SC-74A TO DIP-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.964 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0086 | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | SOT23-5/SC59-5/SC-74A TO DIP-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37898 pcs | Data sheet | Pin Assembly InstrPA0086Adapter Selection Guide |
| Category | Prototyping, Fabrication Products | Size / Dimension | 0.700" x 0.300" (17.78mm x 7.62mm) |
| Series | Proto-Advantage | Proto Board Type | SMD to DIP |
| Pitch | 0.037" (0.95mm) | Package Accepted | SOT-23, SC-59, SC-74A |
| Number of Positions | 5 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material | FR4 Epoxy Glass | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Board Thickness | 0.062" (1.57mm) 1/16" |
