Home > Products > Switches > Snap Action, Limit Switches > E20-50K

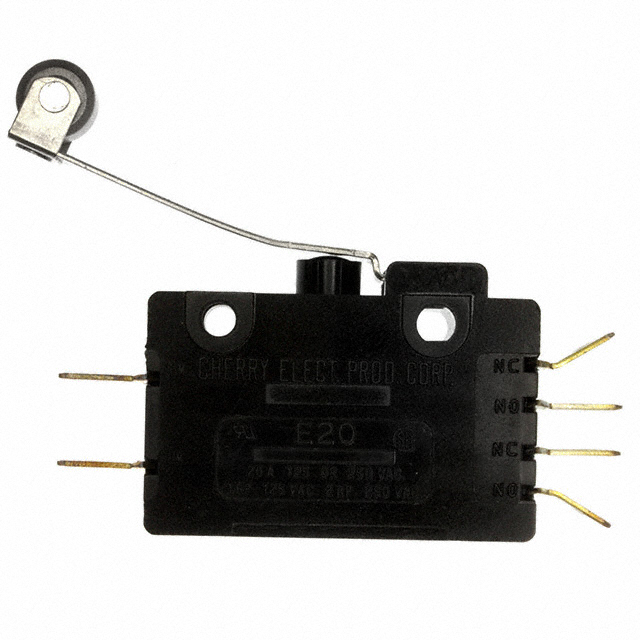

E20-50K

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E20-50K with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E20-50K
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12239 pcs
Reference Price (In US Dollars)	1008 pcs
Reference Price (In US Dollars)	$2.876

Product parameter
Data sheet

Product parameter

Part Number	E20-50K	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12239 pcs	Data sheet	E19,20, G20 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Mom
Series	E	Release Force	-
Pretravel	0.524" (13.3mm)	Packaging	Bulk
Overtravel	0.146" (3.7mm)	Other Names	0E20-50K 0E20-50K0 0E2050K0 0E2050KO CH330 E20-50K0
Operating Temperature	-40°C ~ 105°C	Operating Position	0.825" (21.0mm)
Operating Force	312gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.075" (1.9mm)
Current Rating	20A (AC)	Circuit	DPDT
Actuator Type	Lever, Roller
