Home > Products > Switches > Snap Action, Limit Switches > E19-00J

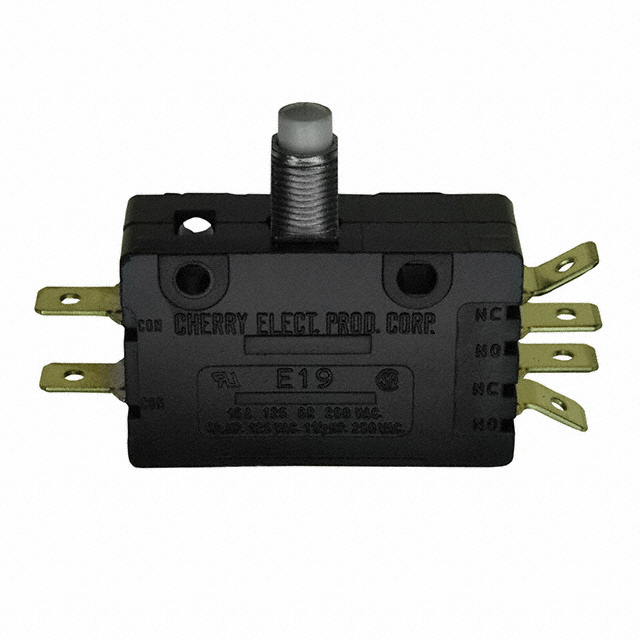

E19-00J

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E19-00J with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E19-00J
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 14892 pcs
Reference Price (In US Dollars)	900 pcs
Reference Price (In US Dollars)	$2.08

Product parameter
Data sheet

Product parameter

Part Number	E19-00J	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14892 pcs	Data sheet	E19,20, G20 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Mom
Series	E	Release Force	-
Pretravel	0.050" (1.27mm)	Packaging	Bulk
Overtravel	0.079" (2.0mm)	Other Names	0E19-00J0 0E1900J0 0E1900JO 0F19-00J CH322 F19-00J0
Operating Temperature	-40°C ~ 105°C	Operating Position	0.670" (17.0mm)
Operating Force	850gf	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.015" (0.38mm)
Current Rating	15A (AC)	Circuit	DPDT
Actuator Type	Overtravel Plunger
