Home > Products > Switches > Snap Action, Limit Switches > E19-00H

E19-00H

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E19-00H with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E19-00H
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17211 pcs
Reference Price (In US Dollars)	1008 pcs
Reference Price (In US Dollars)	$1.888

Product parameter
Data sheet

Product parameter

Part Number	E19-00H	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17211 pcs	Data sheet	E19,20, G20 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Mom
Series	E	Release Force	-
Pretravel	0.275" (7.0mm)	Packaging	Bulk
Overtravel	0.187" (4.75mm)	Other Names	0E19-00H 0E19-00H0 0E1900H0 0E1900HO CH321 E19-00H0
Operating Temperature	-40°C ~ 105°C	Operating Position	0.312" (7.9mm)
Operating Force	205gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.093" (2.36mm)
Current Rating	15A (AC)	Circuit	DPDT
Actuator Type	Lever, Straight

Related products
Related news

Related products

Part#:~~E19-00M~~
Manufacturers:~~Cherry Switches (ZF Electronics)~~
Description:~~SWITCH SNAP ACTION DPDT 15A 125V~~
In Stock:~~17880~~

~~$1.945/pcs~~RFQ

Part#:~~E19-00A~~
Manufacturers:~~Cherry Switches (ZF Electronics)~~
Description:~~SWITCH SNAP ACTION DPDT 15A 125V~~
In Stock:~~22709~~

~~$1.609/pcs~~RFQ

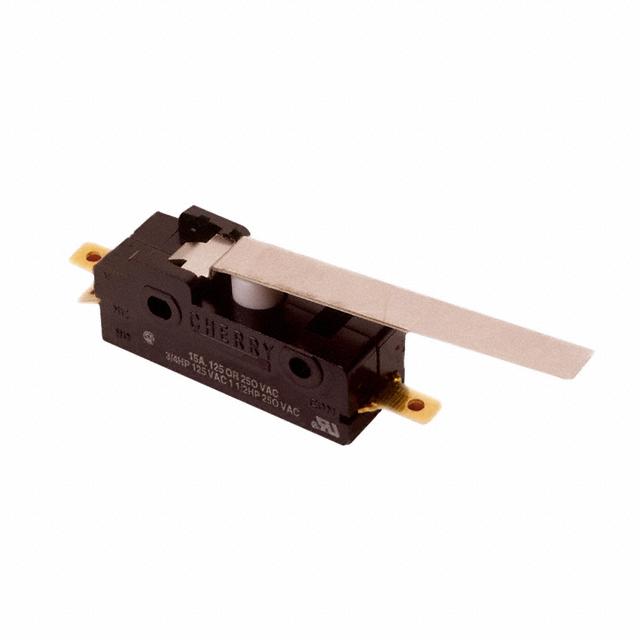

Part#:~~E19-50H~~
