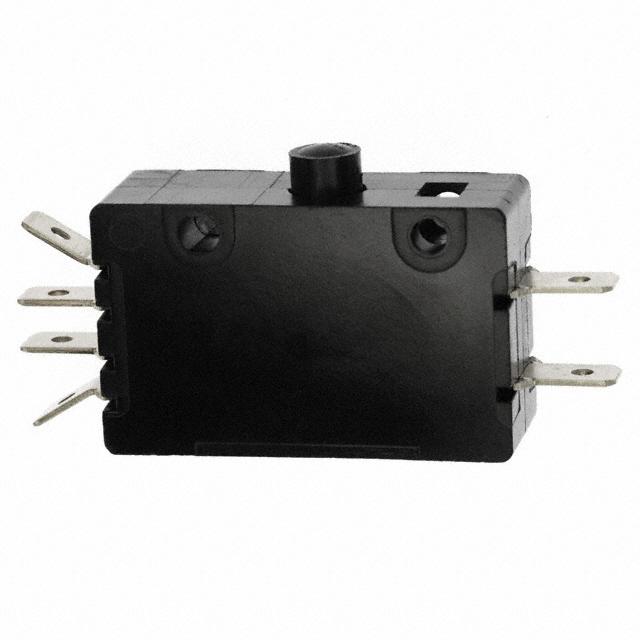

E19-00A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E19-00A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy E19-00A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | E19-00A |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION DPDT 15A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.927 | $2.34 | $2.223 | $2.164 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.872 | $1.755 | $1.667 | $1.609 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | E19-00A | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION DPDT 15A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22709 pcs | Data sheet | E19,20, G20 Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Switch Function | On-Mom |
| Series | E | Release Force | - |
| Pretravel | 0.050" (1.27mm) | Packaging | Bulk |
| Overtravel | 0.079" (2.0mm) | Other Names | 0E19-00A 0E19-00A0 0E1900A0 0E1900AO CH320 E19-00A0 E1900A |
| Operating Temperature | -40°C ~ 105°C | Operating Position | 0.285" (7.24mm) |
| Operating Force | 850gf | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Electrical Life | 6,000 Cycles | Differential Travel | 0.015" (0.38mm) |
| Current Rating | 15A (AC) | Circuit | DPDT |
| Actuator Type | Round (Pin Plunger) |
