Home > Products > Switches > Snap Action, Limit Switches > E13-00J

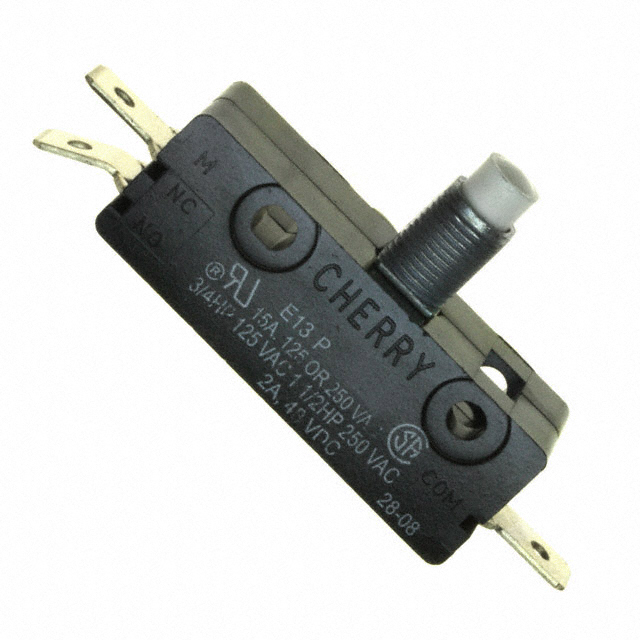

E13-00J

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E13-00J with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E13-00J
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 34661 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.042

Product parameter
Data sheet

Product parameter

Part Number	E13-00J	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34661 pcs	Data sheet	E13,14, G13 Series Datasheet
Category	Switches	Voltage Rating - DC	48V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Mom	Series	E
Release Force	-	Pretravel	0.050" (1.27mm)
Packaging	Bulk	Overtravel	0.109" (2.77mm)
Other Names	0E13-00J 0E13-00J0 0E1300J0 CH100 E13-00J0	Operating Temperature	-40°C ~ 105°C
Operating Position	0.670" (17.0mm)	Operating Force	425gf
Mounting Type	Panel Mount	Mechanical Life	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.015" (0.38mm)
Current Rating	15A (AC), 2A (DC)	Circuit	SPDT
Actuator Type	Overtravel Plunger
