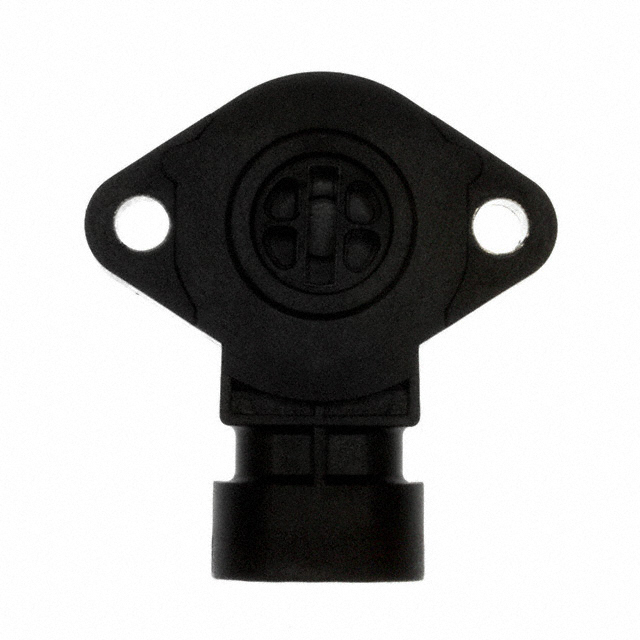

AN101101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN101101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AN101101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN101101 |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SENSOR ROTARY 120 DEG CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $12.963 | $11.196 | $10.312 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.133 | $8.839 | $8.544 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN101101 | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SENSOR ROTARY 120 DEG CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4330 pcs | Data sheet | AN1 SeriesAN1 & AN2 Technical Bulletin |
| Category | Sensors, Transducers | Voltage - Supply | 5V |
| Termination Style | Connector | Technology | Magnetoresistive |
| Supplier Device Package | - | Series | AN1 |
| Rotation Angle - Electrical, Mechanical | 5° ~ 85°, 0° ~ 120° | Resistance Tolerance | - |
| Packaging | Bulk | Package / Case | Module |
| Output Signal | Counterclockwise Increase | Output | Analog Voltage |
| Other Names | AN101101-ND CH925 |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Linearity | ±2% |
| Linear Range | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| For Measuring | Rotary Position | Detailed Description | Magnetoresistive Sensor Rotary Position Slotted Shaft Connector |
| Actuator Type | Slotted Shaft |
