AN1433SSMTXL

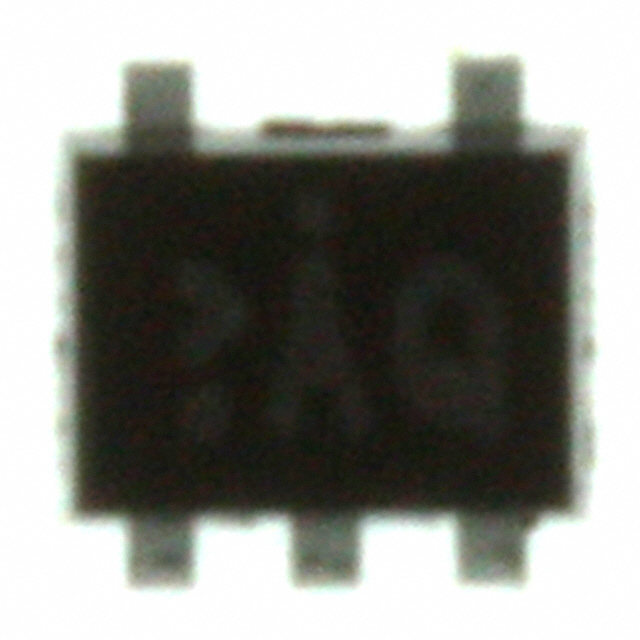

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN1433SSMTXL with confidence from Components-World.HK, 1 Year Warranty
Dowload AN1433SSMTXL Details in PDFSee Product Specifications for product details.
Buy AN1433SSMTXL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN1433SSMTXL |
|---|---|
| Manufacturer | Panasonic |
| Description | IC VREF SHUNT ADJ SSMINI-5D |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.468 | $0.415 | $0.375 | $0.328 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.288 | $0.254 | $0.201 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN1433SSMTXL | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC VREF SHUNT ADJ SSMINI-5D | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 95376 pcs | Data sheet | AN1433SSM Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 14V | Voltage - Input | - |
| Tolerance | ±1% | Temperature Coefficient | - |
| Supplier Device Package | SSMini-5D | Series | - |
| Reference Type | Shunt | Packaging | Cut Tape (CT) |
| Package / Case | SOT-665 | Output Type | Adjustable |
| Other Names | AN1433SSMTXLCT | Operating Temperature | -30°C ~ 85°C (TA) |
| Noise - 10Hz to 10kHz | - | Noise - 0.1Hz to 10Hz | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | Shunt Voltage Reference IC 14V ±1% 20mA SSMini-5D |
| Current - Supply | - | Current - Output | 20mA |
| Current - Cathode | 200µA | Base Part Number | AN1433 |
