AN15866A-VT

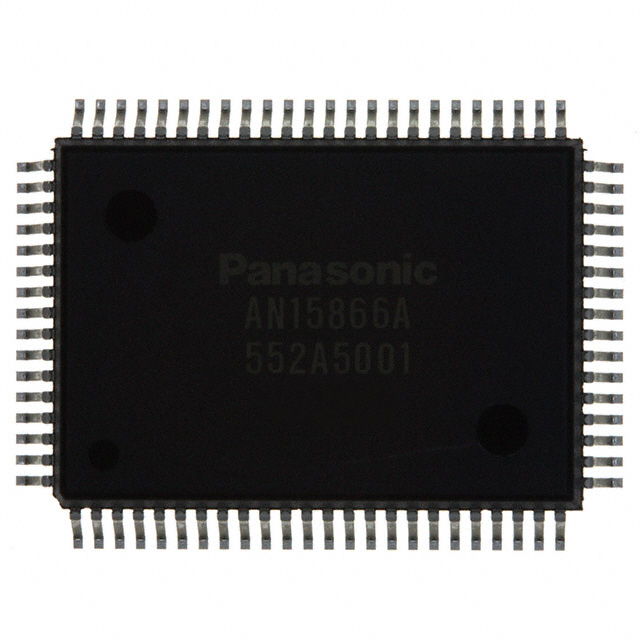

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN15866A-VT with confidence from Components-World.HK, 1 Year Warranty
Dowload AN15866A-VT Details in PDFSee Product Specifications for product details.
Buy AN15866A-VT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN15866A-VT |
|---|---|
| Manufacturer | Panasonic |
| Description | IC VIDEO SWITCH 17IN/5OUT QFH-80 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $3.946 | $3.551 | $3.235 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN15866A-VT | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC VIDEO SWITCH 17IN/5OUT QFH-80 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9933 pcs | Data sheet | AN15866A Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 8.5 V ~ 9.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Circuit | - |
| Supplier Device Package | 80-QFH (14x20) | Series | - |
| Packaging | Tray | Package / Case | 80-QFP |
| Operating Temperature | -20°C ~ 75°C (TA) | On-State Resistance (Max) | - |
| Multiplexer/Demultiplexer Circuit | - | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | Video Switch IC 80-QFH (14x20) | Base Part Number | AN15866A |
| Applications | Video | -3db Bandwidth | - |
