SJD1-3201-54

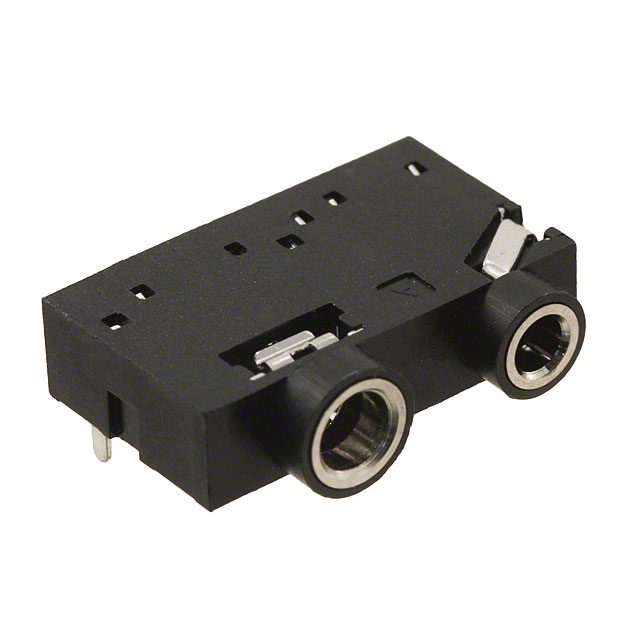

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJD1-3201-54 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJD1-3201-54 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJD1-3201-54 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK DUAL STEREO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.795 | $0.723 | $0.679 | $0.649 | $0.62 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.561 | $0.516 | $0.443 | $0.413 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJD1-3201-54 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK DUAL STEREO 2.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84593 pcs | Data sheet | SJD1-3201-54 |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 045-1100R CP1-320154 SJD1-3201-54-ND SJD1320154 |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 2 Sets of 3 Conductors, 9 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Two Switches |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Board Guide |
| Detailed Description | 2.50mm (3/32", Sub Mini, Miniature) - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack, Dual | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.102" (2.60mm), 0.142" (3.60mm) |
