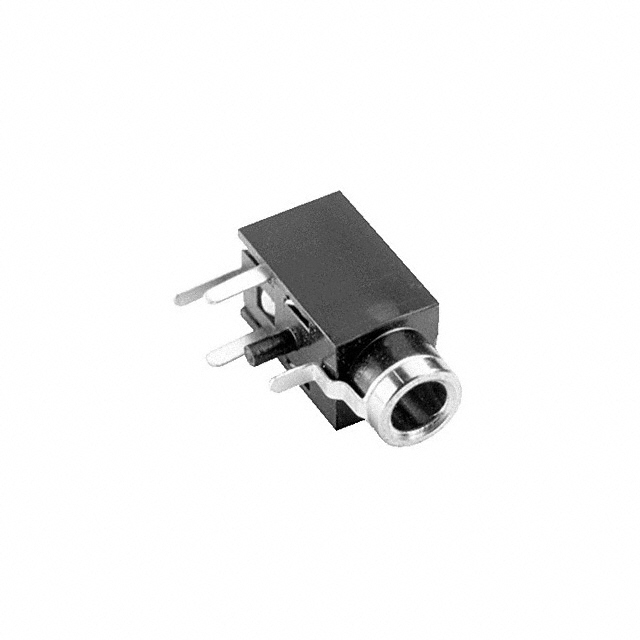

SJ-2503A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-2503A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-2503A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-2503A |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-2503A | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 2.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4937 pcs | Data sheet | SJ-2503A |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | - | Other Names | CP-2503A |
| Operating Temperature | -20°C ~ 60°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Polyoxymethylene (POM) |
| Gender | Female | Features | - |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Silver | Contact Material | Phosphor Bronze |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.102" (2.60mm) |
