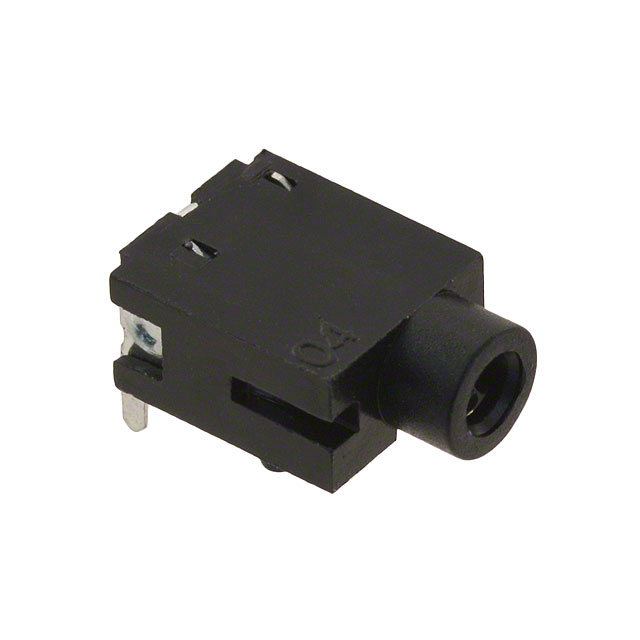

SJ-2504N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-2504N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-2504N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-2504N |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.257 | $0.225 | $0.211 | $0.203 | $0.194 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.176 | $0.159 | $0.141 | $0.128 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-2504N | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 2.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156655 pcs | Data sheet | SJ-2504N |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 045-0576R CP-S2504N SJ2504N |
| Operating Temperature | -20°C ~ 60°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | Includes | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | - | Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.102" (2.60mm) |
