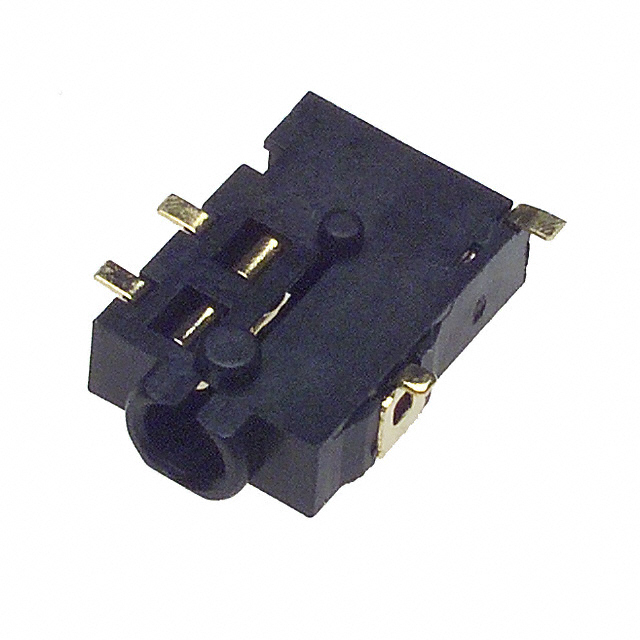

SJ-2534-SMT-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-2534-SMT-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-2534-SMT-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-2534-SMT-1 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK STEREO 2.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | SJ-2534-SMT-1 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 2.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5322 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | SJ | Panel Hole Size | - |
| Packaging | - | Other Names | CP-2534SJ |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mating Length/Depth | 0.433" (11.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Female | Features | Board Guide |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Gold | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.102" (2.60mm) |
