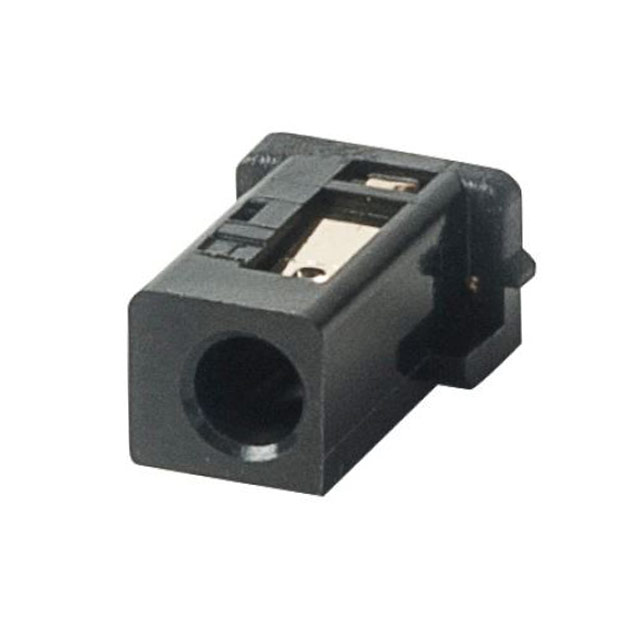

PJ-077
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-077 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-077 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-077 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.388 | $0.342 | $0.322 | $0.309 | $0.295 | |
| 320 pcs | 640 pcs | 1280 pcs | 2560 pcs | ||
| $0.268 | $0.241 | $0.215 | $0.195 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-077 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98158 pcs | Data sheet | PJ-077 Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 102-4284 PJ-077-ND |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | - |
| Mating Length/Depth | 0.217" (5.50mm) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | Black |
| Ingress Protection | - | Industry Recognized Mating Diameter | 0.60mm ID (0.024"), 2.00mm OD (0.079") |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Female | Features | - |
| Detailed Description | Power Barrel Connector Jack 0.60mm ID (0.024"), 2.00mm OD (0.079") Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material - Plating | Gold | Contact Material | Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | Copper Alloy | Body Color | Black |
| Actual Diameter | 0.020" (0.50mm ID), 0.083" (2.10mm OD) |
