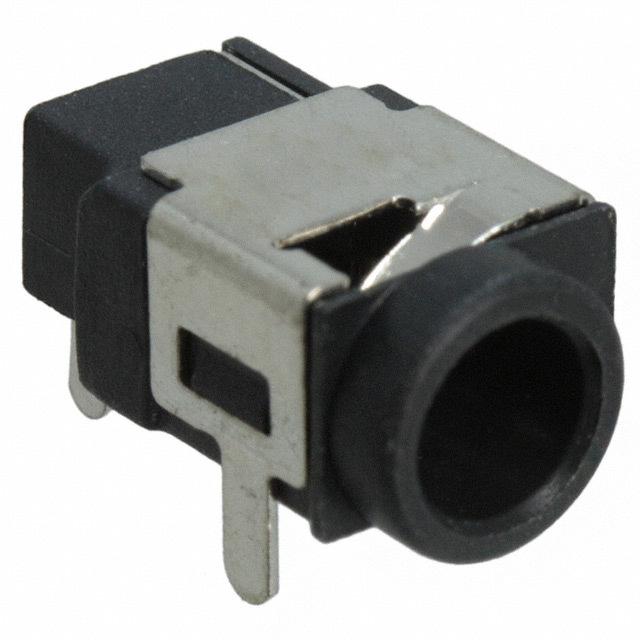

PJ-071
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-071 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-071 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-071 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 0.9X3.2MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.259 | $0.226 | $0.213 | $0.204 | $0.195 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.177 | $0.16 | $0.142 | $0.129 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-071 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 0.9X3.2MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 180862 pcs | Data sheet | PJ-071 |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Shielded | Series | - |
| Packaging | Bulk | Other Names | CP-071 PJ071 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.276" (7.00mm) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 0.90mm ID (0.035"), 3.20mm OD (0.126") | Includes | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Gender | Male |
| Features | Board Guide | Detailed Description | Power Barrel Connector Jack 0.90mm ID (0.035"), 3.20mm OD (0.126") Through Hole, Right Angle |
| Current Rating | 2A | Contact Material - Plating | Tin |
| Contact Material | Brass; Copper Alloy | Connector Type | Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Body Material | - |
| Body Color | Black | Actual Diameter | 0.031" (0.80mm ID), 0.132" (3.35mm OD) |
